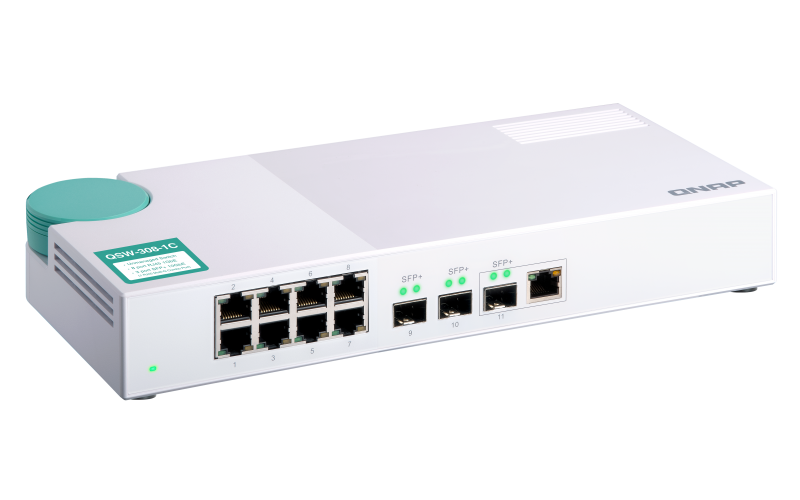

Qnap Qsw-308-1C Eight 1GbE Nbase-T Ports, Three 10GbE Sfp+ With Shared One 10Gbase-T Ports Unmanage Switch, 10GbE Nbase-T Support For 5-speed Auto Negotiation QSW-308-1C
SKU
290942
Brand
MPN
QSW-308-1C
Warranty
Standard Manufacturer's Warranty
$370.00
Buy Now And Earn 370 Reward Points!
QUICK OVERVIEW
With Shared One 10Gbase-T Ports Unmanage Switch 10Gbe Nbase-T Support For 5-Speed Auto Negotiation
QNAP QSW-308-1C Eight 1GbE NBASE-T ports, Three 10GbE SFP+ with shared one 10GBASE-T ports unmanage switch, 10GbE NBASE-T support for 5-speed auto negotiation (10G/5G/2.5G/1G/100M
| MPN | QSW-308-1C |
|---|---|
| UPC | 4713213516003 |
| Brand | QNAP |
| Color | White |
| Model | QSW-308-1C |
| Weight | 770 g (27.16 oz) |
| Fanless | true |
| Category | Networking |
| Warranty | Limited warranty - 2 years |
| Dimensions | Depth: 12.7 cm (5.00 in) Width: 29 cm (11.42 in) Height: 4.25 cm (1.67 in) |
| Electrical | Current: 2.5 A Power Supply: External DC power adapter (flexible DC power connector) Input Voltage: AC 120/230 V (50 - 60 Hz) Standby Power Consumption: 3.1 W Power Consumption (Operational): 36 W |
| Manageable | No (unmanaged) |
| Description | Compact, fanless unmanaged desktop switch providing hybrid high‑speed connectivity for home and office networks. The QSW-308-1C features three 10GbE SFP+ ports (including one SFP+/RJ45 combo port that supports 10G/5G/2.5G/1G/100M NBASE-T), eight Gigabit RJ45 ports, and a 76 Gbps switching capacity for full wire‑speed throughput. The SFP+ ports support direct-attach copper (DAC) and 10G SFP+ transceivers; note SFP+ ports are not backward compatible with 1GbE SFP. Its fanless, ventilated design enables silent operation; the unit uses an external DC power connector (external power adapter) for deployment flexibility. Ideal for expanding small networks or connecting NAS, workstations and other high-speed devices. |
| Form Factor | Desktop |
| Performance | Jumbo Frame: 10 KB Priority Queues: 8 MAC Address Table: 16K entries Switching Capacity: 76 Gbps |
| Total Ports | 11 |
| Port Details | SFP+ Notes: Supports direct attach copper (DAC) cables and 10G SFP+ transceivers; SFP+ ports are not backward compatible with 1GbE SFP RJ45 Cabling Note: To achieve 10Gb/s on copper, Cat6 (up to ~45 m) or Cat6a/Cat7 as appropriate with compatible transceivers/cabling |
| Product Type | Unmanaged Switch |
| Sub-Category | Switches and Hubs |
| Environmental | Operating Humidity: 5 - 95% (non-condensing) Operating Temperature: { "Max": "104 °F (40 °C)", "Min": "32 °F (0 °C)" } |
| Product Title | QNAP QSW-308-1C 11-Port Unmanaged 10GbE Desktop Switch (3× SFP+ with 1× SFP+/RJ45 combo, 8× Gigabit) |
| Switching Type | 10 Gigabit Ethernet (Layer 2) |
| Priority Queues | 8 |
| Additional Notes | Unmanaged plug-and-play operation; automatically negotiates duplex and optimal speed for connected devices Ideal for connecting NAS, workstations and other high-speed network devices |
| Country of Origin | Taiwan |
| Status Indicators | Link/activity Port transmission speed Power Status |
| Packaging Quantity | 1 |
| Port Configuration | 1GbE RJ45: 8 ports 10GbE SFP+: 3 ports (includes 1 SFP+/RJ45 combo) Combo Port Notes: Combo SFP+/RJ45 port supports up to 5 speeds: 10G / 5G / 2.5G / 1G / 100M (NBASE-T) |
| Switching Capacity | 76 Gbps |
| Jumbo Frame Support | 10 KB |
| Supported Standards | IEEE 802.3 IEEE 802.3u (100BASE-TX) IEEE 802.3ab (1000BASE-T) IEEE 802.3an (10GBASE-T) IEEE 802.3bz (2.5G/5G BASE-T) |
| Included Accessories | Rubber feet |
| MAC Address Table Size | 16K entries |
| Manufacturer Part Number | QSW-308-1C-US |
| Source Models/Identifiers | Alternate Model: QSW-308-1C-US |
QNAP QSW-308-1C Eight 1GbE NBASE-T ports, Three 10GbE SFP+ with shared one 10GBASE-T ports unmanage switch, 10GbE NBASE-T support for 5-speed auto negotiation
