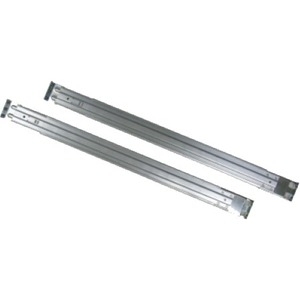

Qnap Rail Kit Qnap Rackmount Kit For Ts-Ec2480U-Rp RAIL-A02-90
SKU
228503
Brand
MPN
RAIL-A02-90
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$311.00
Buy Now And Earn 311 Reward Points!
Model:RAIL-A02-90
Category: Rail
Description: Rail Kit for TS-EC2480U-RP rackmount models
EAN: 4712511127393
UPC: 885022008704
Dimension: 710 x 99 x 68 mm (28.4 x 3.96 x 2.72 inch)
Weight: 2.63kg (5.80lb)
Max Load: 90 Kg
Applied Model: TS-EC2480U-RP, TVS-EC2480U-SAS-RP
please make sure the server racks conform to the following criteria:
1. Rack size
A. Mounting post width: ≥ 17.8"/451mm
B. Panel width: ≥ 19.1"/485mm
C. Mounting post depth: 22.8" ~ 34.3"/578.6mm~871.5mm
D. The distance between two rack posts is 18.3"/465mm (center-to-center measurement of the rack's square holes).
2. The optional rack kits for rack mount models are only compatible with square-hole server racks.
| Manufacturer | QNAP Systems |
|---|---|
| Manufacturer Part Number | RAIL-A02-90 |
| Manufacturer Website Address | http://www.qnap.com/en-au |
| Brand Name | QNAP |
| Product Model | RAIL-A02-90 |
| Product Name | Rail Kit for TS-EC2480U-RP Rack Mount Models |
| Product Type | Mounting Rail Kit |
| Device Supported | Server |
| Maximum Load Capacity | 35 kg |
| Compatibility | QNAP TS-EC2480U-RP Server |
QNAP RAIL KIT Qnap Rackmount Kit for TS-EC2480U-RP
