Qnap Qsw-M3224-24T, Management Switch, 24 Port Of 10gbE RJ45, Rackmount Design, 2 Years Rtb QSW-M3224-24T
SKU
228610
Brand
MPN
QSW-M3224-24T
Warranty
1 Year Manufacturer's return to base
$3,212.00
Buy Now And Earn 3212 Reward Points!
QUICK OVERVIEW

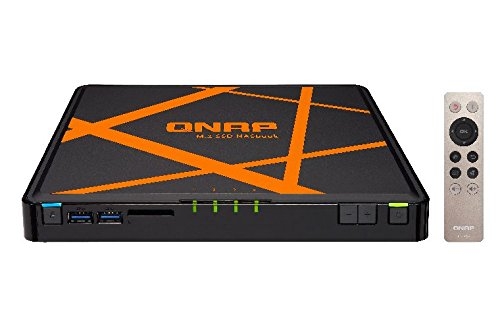

DDR3L SODIMM RAM (max 8GB), SATA 6Gb/ s, 2y AR wty TBS-453A-4G
QNAP QSW-M3224-24T, Management Switch, 24 port of 10gbE RJ45, rackmount design, 2 Years RTB
| Ordering P/N | TBS-453A-4G-960GB | TBS-453A-4G-480GB | TBS-453A-4G | TBS-453A-8G-960GB | TBS-453A-8G-480GB | TBS-453A-8G |
|---|---|---|---|---|---|---|
| Processor | 14nm Intel® Celeron® N3150 quad-core 1.6GHz, burst up to 2.08GHz | |||||
| Floating Point Unit | ✔ | |||||
| Hardware Encryption Acceleration | ✔ (AES-NI) | |||||
| GPU | 8th generation Intel HD Graphics | |||||
| System Memory | 4GB (2 x 2GB) | 8GB (2 x 4GB) | ||||
| Maximum Memory | 8GB | |||||
| Memory Slot | 2, SODIMM DDR3L-1600 (*For dual-DIMM configurations, you must use a pair of identical DDR3L RAM modules.) | |||||
| Flash | 4GB | |||||
| Drive Type | 4 x M.2 2280/2260/2242 SATA 6Gb/s SSDs | |||||
| Pre-installed M.2 SSDs | 4 x 240GB* | 2 x 240GB* | - | 4 x 240GB* | 2 x 240GB* | - |
| Raw Capacity | 960GB (RAID 0) | 480GB (RAID 0) | Optional purchase | 960GB (RAID 0) | 480GB (RAID 0) | Optional purchase |
| Default Capacity (Factory Configuration) | 720GB (RAID 5) | 240GB (RAID 1) | Optional purchase | 720GB (RAID 5) | 240GB (RAID 1) | Optional purchase |
| Network | 5 x Gigabit LAN ports (Port 1 and any of the four ports from 2-1 to 2-4 are available to the 2 built-in network cards, and the remaining three ports can work as switch ports.) | |||||
| USB Port | 4 x USB 3.0 & 1 x USB 2.0 ports Support USB printer, pen drive, and USB UPS, etc. | |||||
| Video Output | 2 x HDMI, up to 4K 2160P 30Hz Ultra HD support | |||||
| Audio Input | 2 x 3.5mm microphone jack (dynamic microphone only) | |||||
| Audio Output | 1 x built-in speaker, 1 x line out jack (for amplifier or headphone amplifier) | |||||
| LED | Status/Power, USB, SSD 1-4 | |||||
| Button | Power, USB one-touch-backup, Reset, Volume Up, Volume Down | |||||
| IR Receiver | ✔, support QNAP RM-IR002, RM-IR003 and MCE-compatible Remote Control(DM) | |||||
| Security | Kensington security slot | |||||
| Dimension (HxWxD) | 25 x 230 x 165 mm / 0.98 x 9.06 x 6.50 inch | |||||
| Weight | 760g / 1.68lbs. | 742g / 1.64lbs. | 724g / 1.60lbs. | 760g / 1.68lbs. | 742g / 1.64lbs. | 724g / 1.60lbs. |
| Power Consumption (W) | System sleep mode: 0.98W SSD standby: 13.05W In operation: 15.2W | |||||
| Sound Level** | Sound pressure (LpAm) :10.8 dB(A) | |||||
| Working Temperature | 0-40˚C | |||||
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C | |||||
| Power | DC10V-20V wide input range | |||||
| Fan | Compact internal fan | |||||
| Package Contents | NASbook, 65W 19V AC adapter, power cord, quick installation guide, Ethernet cable x 2, remote control, SSD installation kit | |||||
QNAP QSW-M3224-24T, Management Switch, 24 port of 10gbE RJ45, rackmount design, 2 Years RTB
