Qnap Tr-004 4-Bay Usb 3.0 Raid Expansion Enclosure 2Yr Wty Tr-004
SKU
276577
Brand
MPN
TR-004
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $450.00 Regular Price $518.00
Buy Now And Earn 450 Reward Points!
| CPU | Micro processor with hardware RAID |
| Drive Bay |
4 x 2.5-inch or 3.5-inch SATA 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility |
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group.
Combining different types of disk in one RAID group is not
supported.
TR-004 does not support the QDA-A2AR/ QDA-A2MAR. |
| Hot-swappable | |
| USB 3.0 port | 1 x Type-C USB 3.0 (USB 3.1 Gen 1) |
| Dimensions (HxWxD) | 168.5 × 160.2 × 219 mm |
| Weight (Net) | 1.85 kg |
| Max. number of HDDs/SSDs supported | 4 |
| Hard Drive Type | 4 x 2.5-inch or 3.5-inch SATA 3Gb/s |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 65W, 100-240V |
| Power Consumption: HDD Sleep Mode | 4.17 W |
| Power Consumption: Operating Mode, Typical |
18.21 W
With drives fully populated
|
| Fan | 1 x 120mm, 12VDC |
| Sound Level | 18.1 db(A) |
| Kensington Security Slot |
Note: Use only QNAP memory modules to maintain system performance and
stability. For NAS devices with more than one memory slot, use QNAP modules
with identical specifications. Warning: Using unsupported modules may
degrade performance, cause errors, or prevent the operating system from
starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.

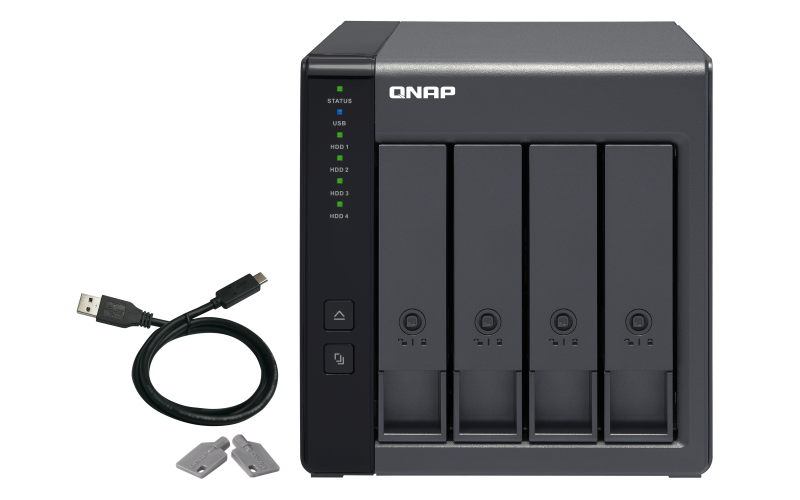

The TR-004 USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.
