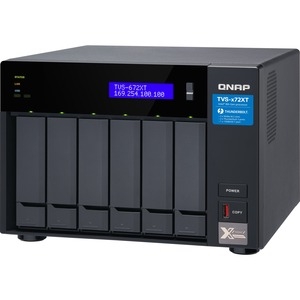

Qnap TVS-672XT-i3-8G 6-Bay Nas, Intel® Core™ I3-8100T 4-core 3.1 GHz Processor, 8GB DDR4 RAM (max 32GB RAM),1 X 10GBase-T Port,2 X Thunderbolt 3 Port, 2y Wty TVS-672XT-i3-8G
SKU
283910
Brand
MPN
TVS-672XT-i3-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,699.00
Buy Now And Earn 3699 Reward Points!
QUICK OVERVIEW
Intel&Reg; Core&Trade; I3-8100T 4-Core 3.1 Ghz Processor 8Gb Ddr4 Ram (Max 32Gb Ram) 2Y Wty Tvs-672Xt-I3-8G
6-Bay NAS, Intel® Core™ i3-8100T 4-core 3.1 GHz Processor, 8GB DDR4 RAM (max 32GB RAM), 6x 2.5"/3.5" SATA HDD/SSD + 2x M.2 PCIe SSD slot, 2xGbE LAN, 1 x 10GBase-T, 2 x Thunderbolt 3 port, 4x USB 3.1 Gen 2 type-C & type-A, USB. 3.0, LCD, 2x PCIe expansion slot, 250W single power supply, 1x MIC In, 1x Line Out
| SKU | TVS-672XT-i3-8G |
|---|---|
| UPC | 885022016488 |
| HDMI | 1 x HDMI 2.0 |
| Brand | QNAP |
| Model | TVS-672XT-i3-8G |
| Category | Storage |
| Warranty | Varies by listing: limited 2-year warranty is commonly listed (some listings reference a 3-year warranty) |
| M.2 Slots | 2 x M.2 2280 (NVMe) for caching/SSD |
| Processor | Intel Core i3 (8th Gen) - i3-8100T |
| USB Ports | Total 5 USB ports: 2 x USB-C (10 Gb/s), 2 x USB-A (10 Gb/s), 1 x USB-A (USB 3.0 / 5 Gb/s) — ports include Thunderbolt 3-capable Type-C |
| Drive Bays | 6 x 3.5"/2.5" SATA III (supports 6 drives) |
| Encryption | AES-NI hardware encryption supported |
| Max Memory | Upgradable to 64 GB |
| Description | The QNAP TVS-672XT-i3-8G is a high-performance 6-bay Tower NAS designed for creative professionals and SMBs that need fast data access, real-time 4K editing and scalable storage. Powered by an 8th Generation Intel Core i3 quad-core 3.1 GHz processor and 8 GB DDR4 memory (standard), the TVS-672XT delivers breakthrough throughput via Thunderbolt 3 (40 Gb/s) and a 10GBASE-T port, and supports NVMe M.2 SSD caching and PCIe expansion (x16/x4) for accelerated workflows. The unit supports multiple RAID levels, hot-swappable drives, HDMI 2.0 output for 4K playback/transcoding, AES-NI encryption, and a rich set of USB and network connectivity. |
| Form Factor | Tower / Desktop |
| Memory Type | DDR4 SDRAM |
| Thunderbolt | 2 x Thunderbolt 3 (USB-C, 40 Gb/s) |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 6.553 kg (net, listed); alternative listing: 7.0 kg (without drives) |
| Product Title | QNAP TVS-672XT-i3-8G 6-Bay Thunderbolt 3 NAS (8GB DDR4) |
| Cooling / Noise | Fans: 1 x 120 mm fan; 2 x 60 mm fans (listed) Noise Level: 21.2 dBA (listed) |
| Processor Cores | Quad-core (4 cores) |
| Processor Speed | 3.1 GHz |
| Notes / Variants | Multiple SKUs/variants exist: diskless systems (TVS-672XT-i3-8G) and pre-populated drive bundles (e.g., 48TB with 6 x 8TB WD Red Plus). Thunderbolt 3 and USB-C ports provide high-bandwidth connectivity for creative workflows. |
| Memory (Standard) | 8 GB DDR4 |
| Power Consumption | Standby: 24.14 W (listed) Typical: 37.32 W (listed) |
| Security Features | Kensington security slot Security Counselor / QuFirewall / WPA2 Enterprise (listed features) |
| Dimensions (HxWxD) | 188.2 × 264.3 × 279.6 mm (7.4" × 10.4" × 11") |
| Hot Swappable Bays | Yes |
| Network / Ethernet | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M), 2 x Gigabit Ethernet (RJ-45) |
| Additional Features | NVMe SSD caching support 4K media playback and real-time transcoding (via HDMI 2.0) OEM Genuine Component verified (listed) AES-NI encryption |
| Typical Power Supply | 250 W |
| Flash Memory Capacity | 4 GB (listed in some specifications) |
| RAID Levels Supported | RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 JBOD |
| Supported Drive Types | 3.5" SATA III; 2.5" SATA; NVMe M.2 (2280) |
| PCIe / Expansion Slots | 2 slots: PCIe Gen3 x16 (CPU) and PCIe Gen3 x4 (PCH) |
| Manufacturer Part Number | TVS-672XT-I3-8G-US TVS672XTI38GUS TVS-672XT-I3-8G-68W-US |
| Operating System / Software | QTS (multiple versions listed: QTS 4.3.5; QTS 5.2.8 referenced) QuTS hero (h5.2.8 referenced) |
| Included Drives / Configurations | Diskless for the TVS-672XT-i3-8G configuration; some SKUs/variants are offered with preinstalled drives (e.g., 6 x 8TB) depending on listing. |
| Model Variants / Alternate Model IDs | TVS-672XT TVS-672XT-I3-8G TVS-672XT-i3-8G-US |
| Package Contents (examples from listings) | Power cord Network cables (two Gigabit Ethernet cables, one 10GbE cable - listed in one bundle) Drive screws for 2.5" and 3.5" drives Two M.2 SSD heatsinks (listed) |
QNAP TVS-672XT-i3-8G 6-Bay NAS, Intel® Core™ i3-8100T 4-core 3.1 GHz Processor, 8GB DDR4 RAM (max 32GB RAM),1 x 10GBase-T port,2 x Thunderbolt 3 port, 2y wty
