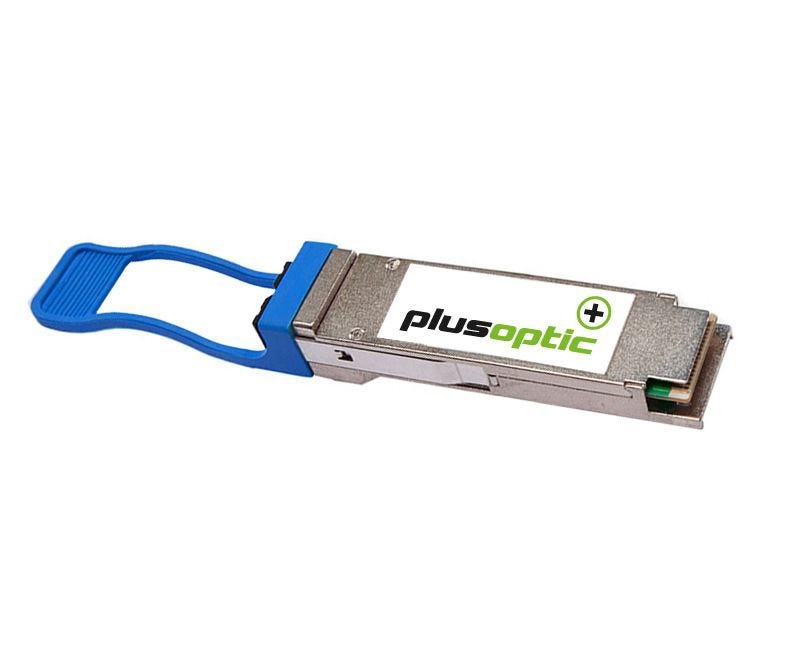

Boost your network performance with this 100G QSFP28 SR4 transceiver. Designed for high-speed 100 Gigabit Ethernet applications, this module operates at an 850nm wavelength over multi-mode fibre (MMF) with a reach of up to 100 meters on OM4 fibre. Featuring an MTP/MPO connector, it's ideal for high-density environments in data centres and enterprise networks. The inclusion of Digital Optical Monitoring (DOM) provides real-time insights into the transceiver's performance, ensuring reliability. Backed by a 3-year warranty, this transceiver offers a dependable and cost-effective solution for your high-bandwidth needs.

Features

• Supports 100 Gigabit Ethernet (100GBASE-SR4)
• 850nm wavelength for multi-mode fibre (MMF)
• Reach up to 100 meters on OM4 fibre, 70 meters on OM3 fibre
• QSFP28 form factor for high port density
• MTP/MPO connector for easy integration
• Digital Optical Monitoring (DOM) for real-time diagnostics
• Low power consumption (<2.5W typical)
• Hot-pluggable

Specifications

• Form Factor: QSFP28
• Data Rate: 100Gbps
• Wavelength: 850nm
• Fibre Type: Multi-Mode Fibre (MMF)
• Maximum Reach: 100m (OM4), 70m (OM3)
• Connector: MTP/MPO
• DOM Support: Yes
• Power Consumption: <2.5W (typical)
• Operating Temperature: 0 C to 70 C
• Compliance: IEEE 802.3bm 100GBASE-SR4, QSFP28 MSA

Warranty

3-Year Warranty
