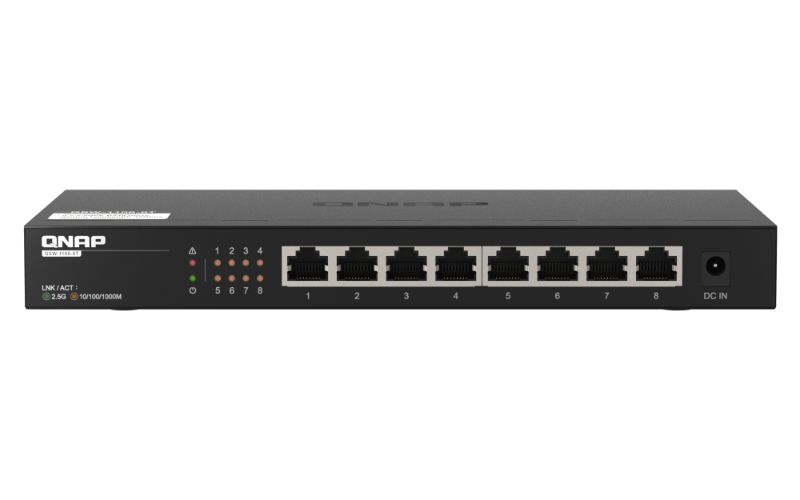

Qnap Qsw-1108-8T, 8 Port 2.5Gbps Auto Negotiation (2.5G/1G/100M), Unmanagement Switch, 2 Yr Wty QSW-1108-8T
SKU
394258
Brand
MPN
QSW-1108-8T
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$215.00
Buy Now And Earn 215 Reward Points!
QNAP QSW-1108-8T, 8 port 2.5Gbps auto negotiation (2.5G/1G/100M), unmanagement switch, 2 Yr WTY
| SKU | QSW-1108-8T |
|---|---|
| Brand | QNAP |
| Model | QSW-1108-8T |
| Notes | Optimized for Wi‑Fi 6/6E environments and home/office use. Some listings reference '-R2' or region-specific model suffixes (e.g., -R2-US); part numbers and UPCs vary by region/listing. |
| Ports | 8 x RJ45 Multi-Gig (2.5G/1G/100M) with auto-negotiation |
| Power | Input Current: 1 A (reported) Input Voltage: 12 VDC Power Supply Type: External AC adapter Max Power Consumption: 12 W (reported) |
| Weight | Net: 0.5 kg (1.1 lb) Gross / Packaged (reported): 0.9–1.5 lb (varies by listing) |
| Cooling | Fanless / passive cooling with vents and internal heatsinks |
| Category | Networking |
| Warranty | 2 years |
| Standards | IEEE 802.3 IEEE 802.3u (100BASE-T) IEEE 802.3ab (1000BASE-T) IEEE 802.3bz (2.5GBASE-T) IEEE 802.3x (Flow Control) IEEE 802.3az (EEE) |
| Dimensions | Metric (WxDxH): 160 x 110 x 26 mm Imperial (WxDxH): 6.3 x 4.3 x 1 in |
| Description | Compact, entry-level unmanaged Multi‑Gig switch offering eight RJ45 2.5GbE ports with auto-negotiation (2.5G/1G/100M) for easy, cost-effective network upgrades using existing Cat5e cabling. Fanless near-silent desktop design with ventilated construction and internal heatsinks, plug-and-play operation, network loop detection and automatic port locking, support for 12K jumbo frames, and energy-efficient operation. Delivers up to 40 Gbps switching capacity (20 Gbps non-blocking) with a 4K MAC address table and includes an external 12V DC power adapter, mounting accessories and a 2-year warranty. |
| Form Factor | Desktop (wall-mountable) |
| Flow Control | IEEE 802.3x Full-Duplex Flow Control |
| Sub-Category | Switches and Hubs |
| Product Color | Black |
| Product Title | QNAP QSW-1108-8T-R2 8-Port 2.5GbE Unmanaged Switch |
| Reported UPCs | 885022028733 885022022205 |
| Certifications | CE FCC IC VCCI RCM BSMI LVD KC UKCA CLASS B EMI |
| Interface Type | RJ45 |
| LED Indicators | Per-port speed/link/activity; Loop LED; System power/status |
| Loop Detection | Yes — automatic loop detection and port locking |
| Switch Chipset | Realtek (reported RTL8373-CG) |
| Layer Supported | Layer 2 |
| Management Type | Unmanaged |
| Manufactured In | Designed / manufactured in Taiwan (reported) |
| Supported Speeds | 2.5 Gbps 1 Gbps 100 Mbps |
| MAC Address Table | 4K entries |
| Switching Capacity | 40 Gbps |
| Included Components | QSW-1108-8T(/-R2) switch External power supply / AC adapter (country-specific plug) Bracket screws / anchors (for wall-mount) Foot pads (rubber feet) Quick Installation Guide (QIG) |
| Jumbo Frame Support | 12K (12,000 bytes) |
| Layer / Product Type | Ethernet Switch (Unmanaged, Multi-Gig 2.5GbE) |
| Operating Conditions | Temperature: 0°C to 40°C (32°F to 104°F) Relative Humidity: 10% to 90% non-condensing |
| Management / Features | Plug-and-play Auto-MDIX/MDI Auto-negotiation Loop detection and blocking Energy-efficient operation Silent operation (fanless) |
| Non-Blocking Throughput | 20 Gbps |
| Energy Efficient Ethernet | IEEE 802.3az (EEE) supported |
| Model Variants / Part Numbers | QSW-1108-8T-R2 QSW-1108-8T-R2-US QSW-1108-8T-US QSW-1108-8T |
| Package Dimensions (reported) | Approx. 10 x 8 x 4.5 in (varies by listing) |
| Total Number of Network Ports | 8 |
QNAP QSW-1108-8T, 8 port 2.5Gbps auto negotiation (2.5G/1G/100M), unmanagement switch, 2 Yr WTY
