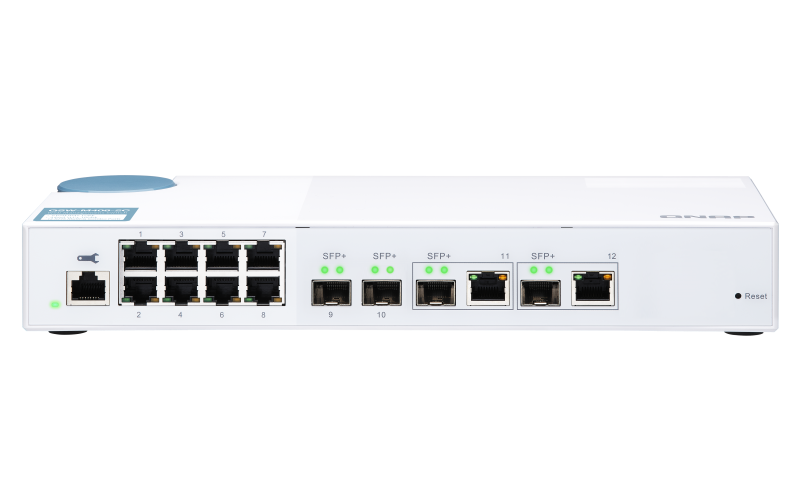

Qnap Qsw-M408-2C, 8 Port 1Gbps, 2 Port 10G Sfp+/ Nbase-T Combo, 2 Port 10G Sfp+, Web Management Switch, 2 Years Rtb QSW-M408-2C
SKU
376949
Brand
MPN
QSW-M408-2C
Warranty
Standard Manufacturer's Warranty
$737.00
Buy Now And Earn 737 Reward Points!
QNAP QSW-M408S, 8 port 1Gbps, 2 port 10G SFP+/ NBASE-T Combo, 2 port 10G SFP+, web management switch, 2 Years RTB
| SKU | QSW-M408-2C |
|---|---|
| Type | Managed Switch |
| Brand | QNAP |
| Model | QSW-M408-2C |
| Power | Fan: PWM double ball-bearing fan x 1 Input Power Type: AC Input Voltage Range: 100-240 VAC, 50/60 Hz Max Power Consumption: 22.04 W Power Supply Description: External power adapter |
| Category | Networking |
| Physical | Buttons: Reset Form Factor: Desktop Weight (Net): 1.15 kg Color / Finish: White / textured surface LED Indicators: Per port: Speed/Link/Activity; Per system: Power/Status Weight (Gross): 1.57 kg Dimensions (HxWxD): 42.5 × 290 × 127 mm |
| Warranty | 2 Years |
| Management | Management Type: Web Managed Management Features: [ "Overview dashboard", "Port management", "Setting guide", "Online firmware update", "Status charts", "LACP (IEEE 802.3ad)", "VLAN (IEEE 802.1Q)", "QoS (IEEE 802.1p)", "IGMP Snooping", "ACL", "LLDP (IEEE 802.1AB)", "RSTP (IEEE 802.1w)", "Flow Control (IEEE 802.3x)" ] Management Software: QNAP Switch System (QSS) Web GUI Management Interface: Web |
| Description | The QNAP QSW-M408-2C is an entry-level Layer 2 web-managed switch designed for hybrid high-speed SMB network deployments. It provides four 10GbE SFP+ ports (two of which are SFP+/RJ45 combo ports) and eight 1GbE RJ45 ports, supporting NBASE-T multi-gig speeds (10G/5G/2.5G/1G/100M) on the combo ports. Managed via QNAP Switch System (QSS) Web GUI, the switch offers essential L2 features (VLAN, LACP, QoS, IGMP Snooping, RSTP), security and system functions (ACL, LLDP, Flow Control), online firmware update and monitoring. The unit supports DAC and 10G-SFP-T copper transceivers (Cat6 for 10Gb/s typically <45 m), has a switching capacity of 96 Gbps (48 Gbps non-blocking throughput), low power consumption (≈22.04 W), compact desktop form factor, one PWM ball-bearing fan, and includes power adapter, power cord and quick installation guide. |
| Jumbo Frames | 9K |
| Port Details | Total Ports: 12 RJ45 (1GbE) Ports: 8 SFP+ Compatibility: 10GbE SFP+ ports are backward compatible with 1GbE SFP RJ45 Supported Speeds: 10G / 5G / 2.5G / 1G / 100M 10GbE SFP+ Ports (total): 4 10GbE SFP+/RJ45 Combo Ports: 2 |
| Sub-Category | Switches and Hubs |
| Environmental | Relative Humidity: 5% to 95% non-condensing Operating Temperature: 0°C to 45°C (32°F to 113°F) |
| Product Title | QNAP QSW-M408-2C 12-Port 10GbE Layer 2 Web-Managed Switch (8x1GbE, 4x10GbE SFP+ including 2x SFP+/RJ45 combo) |
| Number of Ports | 12 |
| Package Contents | QNAP QSW-M408-2C switch Power adapter Power cord Quick Installation Guide |
| MAC Address Table | 16K |
| Switching Capacity | 96 Gbps |
| Supported Standards | IEEE 802.3 IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Alternate Model / SKU | QSW-M408-2C-US |
| Non-blocking Throughput | 48 Gbps |
| Cable & Transceiver Notes | Supports direct attach copper (DAC) cables and 10G-SFP-T copper transceiver modules. For 10Gb/s over Cat6 cable, typical distance < 45 meters (148 feet) per vendor guidance. |
| Certifications & Compliance | Certifications: [ "CE", "FCC", "VCCI", "BSMI" ] Electromagnetic Compliance: CLASS A |
QNAP QSW-M408-2C, 8 port 1Gbps, 2 port 10G SFP+/ NBASE-T Combo, 2 port 10G SFP+, web management switch, 2 Years RTB
