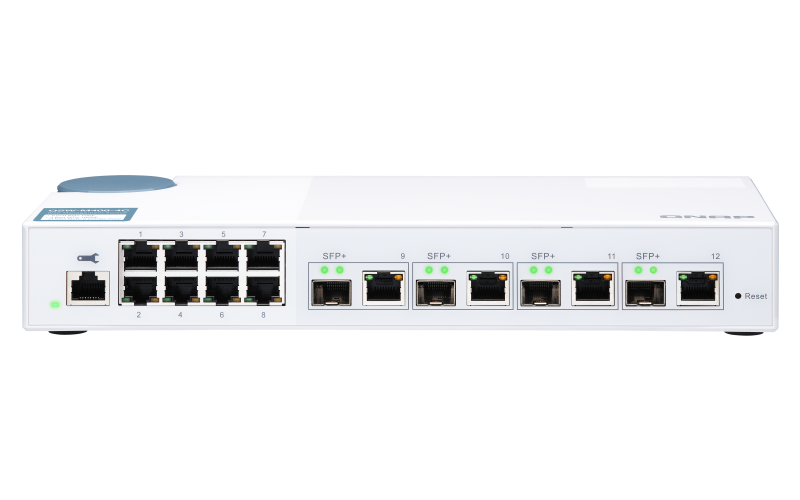

Qnap Qsw-M408-4C, 8 Port 1Gbps, 4 Port 10G Sfp+/ Nbase-T Combo, Web Management Switch, 2 Years Rtb QSW-M408-4C
SKU
307731
Brand
MPN
QSW-M408-4C
Warranty
Standard Manufacturer's Warranty
$969.00
Buy Now And Earn 969 Reward Points!
QNAP QSW-M408-4C, 8 port 1Gbps, 4 port 10G SFP+/ NBASE-T Combo, web management switch, 2 Years RTB
| Fan | PWM double ball bearing fan |
|---|---|
| SKU | QSW-M408-4C |
| UPC | 885022018734 |
| ASIN | B08DKSFXNW |
| Brand | QNAP |
| Layer | Layer 2 |
| Model | QSW-M408-4C |
| Notes | To achieve 10Gb/s over copper, Cat6 cable can be used for distances under ~45 meters; supports DAC for SFP+ direct connections. |
| Ports | 4 x 10GbE SFP+/RJ45 combo ports; 8 x 1GbE RJ45 ports |
| Power | Maximum Power: 90 Watts Current Rating: 6 Amps Power Connector: External DC power adapter |
| Weight | 2.5 pounds |
| Category | Networking |
| Features | LACP / Link aggregation VLAN QoS IGMP snooping ACL LLDP RSTP Flow control (IEEE 802.3x) Energy Efficient Ethernet (IEEE 802.3az) Port speed/priority/limits Traffic analytics / historical data Remote access / overview Firmware update (live/scheduled) Failover / TDoS protection (as supported by firmware) |
| Warranty | Manufacturer limited warranty: 730 days (2 years) |
| Dimensions | 1.67 x 11.42 x 5 inches |
| Description | The QNAP QSW-M408-4C is a 12-port entry-level Layer 2 web-managed switch that provides four 10GbE SFP+/RJ45 combo ports and eight 1GbE RJ45 ports for hybrid high-speed networks. Combo ports support NBASE-T/10GBASE-T and five speeds (10G / 5G / 2.5G / 1G / 100M); SFP+ ports are backward compatible with 1GbE SFP and support direct-attach copper (DAC) connections. The switch offers Layer 2 management via the QNAP Switch System (QSS) web GUI and includes LACP/link aggregation, VLAN, QoS, IGMP snooping, ACL, LLDP, RSTP, flow control, energy-efficient Ethernet support, and traffic/firmware management features. Hardware highlights include a 96 Gbps switching capacity, a 16K MAC address table, desktop form factor with front ports, PWM double-ball-bearing fan, and a compact low-noise design. Package contents include the QSW-M408-4C, external power adapter and power cord, and a quick installation guide. |
| Form Factor | Desktop; compact, low-noise |
| Port Details | SFP+ Notes: SFP+ ports support 10GbE; backward compatible with 1GbE SFP; supports DAC Port Location: Front-facing Combo RJ45 Supported Speeds: 10G / 5G / 2.5G / 1G / 100M |
| Sub-Category | Switches and Hubs |
| Product Title | QNAP QSW-M408-4C 12-Port 10GbE Layer 2 Web-Managed Switch (4 SFP+/RJ45 Combo, 8 x 1GbE) |
| Management Type | Web Managed (Layer 2) |
| Number of Ports | 12 |
| Package Contents | QSW-M408-4C switch Power adapter Power cord Quick installation guide |
| Supported Speeds | 10 Gbps 5 Gbps 2.5 Gbps 1 Gbps 100 Mbps |
| MAC Address Table | 16K entries |
| Data Transfer Rate | 10 Gigabits Per Second (for 10GbE ports) |
| SFP+ Compatibility | Backward compatible with 1GbE SFP |
| Switching Capacity | 96 Gbps |
| Management Software | QNAP Switch System (QSS) Web GUI |
| Included Accessories | External power adapter Power cord Quick installation guide |
| Standards Compliance | 10GBASE-T NBASE-T IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3x (Flow Control) |
| Manufacturer Part Number | QSW-M408-4C (QSW-M408-4C-US referenced by some sellers) |
QNAP QSW-M408-4C, 8 port 1Gbps, 4 port 10G SFP+/ NBASE-T Combo, web management switch, 2 Years RTB
