Qnap Dual 10GbE Ports With Sr-Iov And Iscsi, Block-based, Supports Multiple Virtual Disk Modes[QXG-10G2T-X710] QXG-10G2T-X710
SKU
416393
Brand
MPN
QXG-10G2T-X710
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$688.00
Buy Now And Earn 688 Reward Points!
QNAP Dual 10GbE Ports with SR-IOV and iSCSI, Block-based, Supports Multiple Virtual Disk Modes[QXG-10G2T-X710]
| SKU | QXG-10G2T-X710 |
|---|---|
| UPC | 885022021505 |
| ASIN | B095XMV6Z8 |
| Brand | QNAP |
| Model | QXG-10G2T-X710 |
| Notes | Driver required for some Windows and Linux configurations. Do not infer compatibility beyond listed OS and kernel versions. |
| Ports | 2 |
| iSCSI | Supported |
| SR-IOV | Supported |
| Features | SR-IOV iSCSI Port trunking (link aggregation) Multiple virtual disk modes Supports virtualization workloads and latency-sensitive I/O |
| Use Case | I/O-intensive and latency-sensitive virtualization applications, NAS expansion, high-speed file sharing and intensive data transfer |
| Warranty | Limited warranty - 2 years |
| Interface | PCIe Gen3 x4 (compatible with PCIe Gen2) |
| Controller | Intel Ethernet Controller X710 |

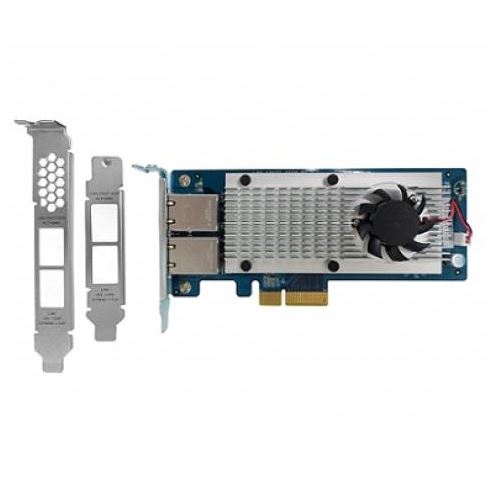

| Description | Dual-port 10GbE network expansion card with Intel X710 controller. PCIe Gen3 x4 interface (compatible with PCIe Gen2) providing two 10GBase-T RJ-45 ports that support 10G/5G/2.5G/1G/100M speeds. Supports SR-IOV (virtualization offload), iSCSI and multiple virtual disk modes, and port trunking to combine both ports for up to 20 Gbps aggregate throughput. Supplied with low-profile bracket preinstalled plus full-height and a specialized bracket for select QNAP NAS. Ideal for I/O-intensive and latency-sensitive virtualization, NAS, server and desktop applications. Driver required for some Windows and Linux environments. |
| Form Factor | Plug-in card |
| Low Profile | Low-profile bracket preinstalled |
| Manufacturer | QNAP |
| Port Trunking | Supported (combine both ports for up to 20 Gbps) |
| Product Title | QNAP QXG-10G2T-X710 Dual-Port 10GbE PCIe Network Card (Intel X710, 2 x 10GBase-T RJ45, SR-IOV, iSCSI) |
| Package Weight | 0.52 lb |
| Product Weight | 0.5 lb (8 oz) |
| MFR Part Number | QXG-10G2T-X710 |
| Supported Speeds | 10G 5G 2.5G 1G 100M |
| Brackets Included | Low-profile bracket (preinstalled) Full-height bracket Specialized bracket for select QNAP NAS |
| Data Link Protocols | Ethernet 10 Gigabit Ethernet |
| Host Interface / Bus | PCI Express 3.0 x4 |
| Included Accessories | 1 x network card Quick installation guide (QIG) Brackets (low-profile, full-height, specialized) |
| Port Type / Connector | 2 x 10GBase-T (RJ-45) |
| Support / Driver Links | https://downloadcenter.intel.com/zh-tw/product/189534 https://www.qnap.com/go/software/virtualization-station https://qnap.to/3dpzeh https://www.qnap.com/s3/qutube/slides/iniRTxq38Uw.pdf |
| PCIe Slot Compatibility | Compatible with PCIe x4 and x1 slots; up to x4 slots recommended |
| Max Aggregate Throughput | Up to 20 Gbps (via port trunking) |
| Product / Box Dimensions | Box Dimensions (L x W x H): 7.4 x 6 x 2.2 inches Other reported product dimensions: various sources - card/box dimensions provided by sellers |
| Virtual Functions per Port | 64 (per port) |
| Compatibility / Typical Use | QNAP NAS Windows and Linux servers/workstations Desktops (with compatible PCIe slot) Data centers and virtualization hosts |
| Supported Operating Systems | QTS 4.4.3 or later QuTS hero Windows 8 and later Windows 10 Windows Server 2019 and later Windows Server (general support mentioned) Linux (driver required) Ubuntu 18.04, 20.04 Linux Kernel 4.20 and 5.x |
| Compatible Switches (examples) | QSW-M2108-2C QSW-1208-8C |
| Data Transfer Rate (not aggregated) | Per-port up to 10 Gbps |
QNAP Dual 10GbE Ports with SR-IOV and iSCSI, Block-based, Supports Multiple Virtual Disk Modes[QXG-10G2T-X710]
