Brand	QNAP
Color	Green / Silver
Model	QXP-T32P
Notes	Do not use in unsupported NAS models; Thunderbolt 2 adapter and TB3/TB4 cable compatibility limits apply as noted by QNAP.
Ports	2 x Thunderbolt 3 (USB Type-C)
Features	Dual Thunderbolt 3 ports for high-speed direct-attached and daisy-chained devices 40 Gbps link speed 4K resolution support Compatible with Thunderbolt 4 devices when using certified TB4 cables or passive TB3 cables shorter than 0.8 m Legacy Thunderbolt 2 compatibility via Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter (limited to TB2 speeds)
Daisy-chain	Supports daisy-chaining up to 6 QNAP Thunderbolt devices (including other QNAP Thunderbolt NAS and QNA series adapters)

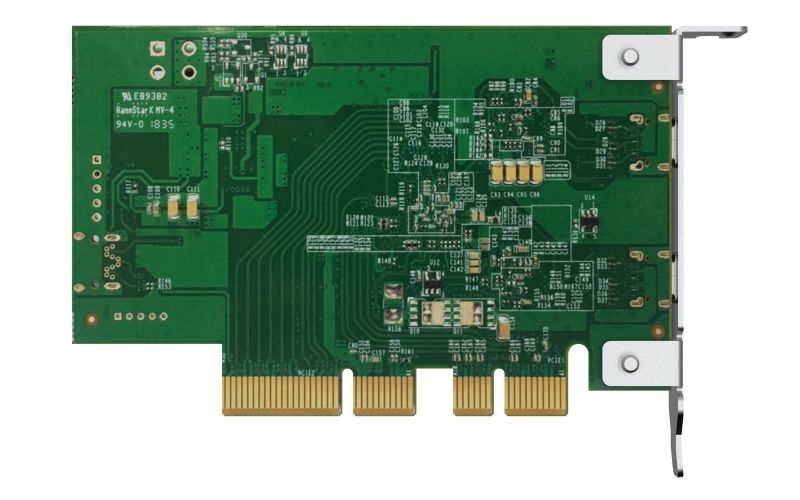

Description	The QNAP QXP-T32P is a dual-port Thunderbolt 3 PCIe expansion card that adds high-speed 40 Gbps Thunderbolt connectivity to compatible QNAP NAS systems. Designed for video editing and other demanding workflows, it enables direct-attached Thunderbolt access, daisy-chaining of up to 6 QNAP Thunderbolt devices, and real-time 4K editing. The card installs in a PCIe Gen3 x4 slot (low-profile form factor with full-height bracket included) and is compatible with select NAS models when running supported QNAP firmware. Thunderbolt 4 devices can be used with certified TB4 or short passive TB3 cables, and legacy Thunderbolt 2 Macs can connect via the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter (TB2 max ~20 Gb/s).
Form Factor	PCIe plug-in card; low-profile (low-profile bracket pre-installed) with full-height bracket included
Item Weight	204 grams (7.2 ounces)
Manufacturer	QNAP
Product Type	Thunderbolt 3 PCIe expansion card
Port Quantity	2
Product Title	QNAP QXP-T32P Thunderbolt 3 PCIe Expansion Card (Dual-Port)
Host Interface	PCI Express 3.0 x4 (PCIe Gen3 x4)
NAS OS Required	QNAP QTS 4.4.0 or later; QNAP QuTS hero 4.5.0 or later
Connector Details	Thunderbolt 3 - 24-pin USB-C
Country of Origin	Taiwan
Item Model Number	QXP-T32P
Packaged Quantity	1
Data Transfer Rate	40 Gbps
Product Dimensions	7.5 x 6.05 x 2.15 inches
Client OS Supported	Windows macOS Linux
Included Accessories	Low-profile pre-installed bracket Full-height bracket QXP-T32P card
Compatibility (NAS Models)	TVS-h1288X TVS-h1688X
PCI Specification Revision	PCIe 3.0
Manufacturer Part Number (MPN)	QXP-T32PCDW
Required Slot / Installation Note	Requires a PCIe Gen3 x4 slot; can only be installed in supported NAS models' PCIe Gen3 x4 slot as specified by QNAP
Optional Accessories (as referenced)	CAB-TBT3-0M7 — 0.7 m Thunderbolt 3 Type-C 40 Gbps passive cable CAB-TBT320M-40G-LINTES — Active Thunderbolt 3 Type-C data cable (EOL noted)

QNAP QNAP QXP-T32P Thunderboltâ„¢ 3 Expansion Card is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: QN99794. Order online for Australia-wide delivery with local support.
