HPE Instant On 1430 16 Ports Ethernet Switch - Gigabit Ethernet - 100Base-TX, 10/100/1000Base-T - 2 Layer Supported - Power Supply - 7.90 W Power Consumption - Twisted Pair, Optical Fiber - Table Top, Under Table, Wall Mountable, Rack-mountable - Life R8R

SKU
390623
MPN
R8R47A#ABG
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$252.00
Buy Now And Earn 252 Reward Points!

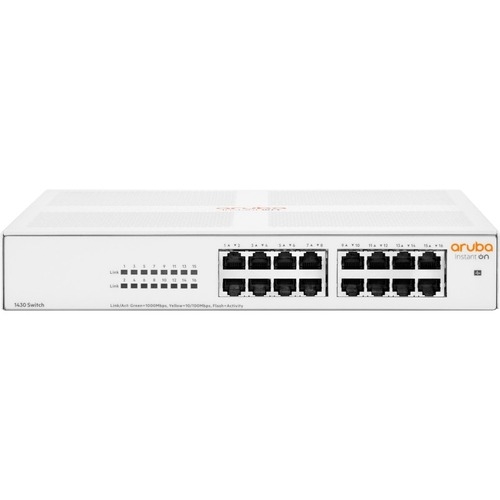

HPE Instant On 1430 16 Ports Ethernet Switch - Gigabit Ethernet - 100Base-TX, 10/100/1000Base-T - 2 Layer Supported - Power Supply - 7.90 W Power Consumption - Twisted Pair, Optical Fiber - Table Top, Under Table, Wall Mountable, Rack-mountable - Lifetime Limited Warranty

Aruba Instant On 1430 Switch Series

Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).

Features
  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices
  • No configuration or management needed
  • Plug-and-play with fully automated functions and zero ongoing maintenance
  • Quality of Service (QoS) and flow control for improved network efficiency
  • Fan-less with Energy Efficient Ethernet for low power consumption
  • Class B certified for home office networks (5 and 8 port models)
Management & Protocols
Manageable No
Miscellaneous
Package Contents
  • Instant On 1430 16G Switch
  • 2 x Mount Kit
Technical Information
Features Fanless
Warranty
Limited Warranty Lifetime
Interfaces/Ports
Network (RJ-45) Yes
Uplink Port Yes
Total Number of Network Ports 16
Port/Expansion Slot Details 16 x Gigabit Ethernet Network
Media & Performance
Network Technology 10/100/1000Base-T
100Base-TX
Ethernet Technology Gigabit Ethernet
Media Type Supported Optical Fiber
Twisted Pair
Network & Communication
Layer Supported 2
Networking Standards IEEE 802.3at
IEEE 802.3ab
IEEE 802.3i
IEEE 802.3az
IEEE 802.3z
IEEE 802.3af
IEEE 802.3
IEEE 802.1p
IEEE 802.3x
IEEE 802.3u
IEEE 802.1x
Power Description
Input Voltage 230 V AC
120 V AC
Power Source Power Supply
Frequency 60 Hz
50 Hz
Power Consumption 7.90 W
General Information
Product Type Ethernet Switch
Manufacturer Part Number R8R47A#ABG
Manufacturer Website Address https://www.hpe.com/au/
Manufacturer Hewlett Packard Enterprise
Product Name Instant On 1430 16G Switch
Product Line Instant On
Product Series 1430
Brand Name HPE
Physical Characteristics
Weight (Approximate) 1.72 kg
Form Factor Wall Mountable
Table Top
Rack-mountable
Under Table
Height 44 mm
Width 275 mm
Depth 258 mm
