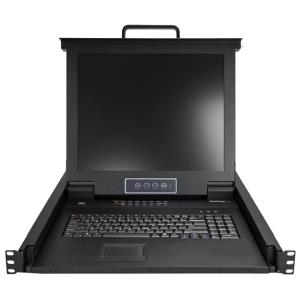

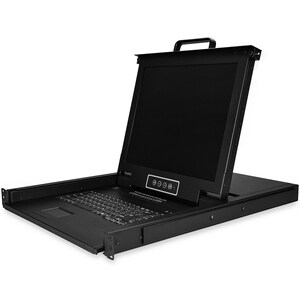

Startech 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor (Rkcons1716K)
Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard, and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
- 16 VGA KVM Cables
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Display & Graphics | |
|---|---|
| Screen Resolution: | 1280 x 1024 |
| Screen Size: | 43.2 cm (17") |
| Screen Mode: | SXGA |
| Display Screen Type: | LCD |
| General Information | |
|---|---|
| Product Type: | LCD Rack Console |
| Manufacturer Website Address: | http://www.startech.com/au |
| Manufacturer: | StarTech.com |
| Product Name: | 16-Port Rackmount KVM Console with 17" Display |
| Brand Name: | StarTech.com |
| Input Devices | |
|---|---|
| Keyboard: | Yes |
| Pointing Device Type: | TouchPad |
| Interfaces/Ports | |
|---|---|
| USB: | Yes |
| VGA: | Yes |
| Number of USB Ports: | 2 |
| Proprietary Interface: | Yes |
| PS/2 Port: | Yes |
| Number of PS/2 Ports: | 2 |
| Number of VGA Ports: | 1 |
| Number of Proprietary Ports: | 16 |
| Miscellaneous | |
|---|---|
| Platform Supported: | PC |
| Physical Characteristics | |
|---|---|
| Material: | Steel |
| Weight (Approximate): | 13.74 kg |
| Colour: | Black |
| Height: | 43.2 mm |
| Width: | 447 mm |
| Depth: | 581.7 mm |
| Power Description | |
|---|---|
| Power Consumption: | 23 W |
| Input Voltage Range: | 100 V AC - 240 V AC |
| Technical Information | |
|---|---|
| KVM Switch: | Yes |
| Number of Computers Supported: | 16 |
