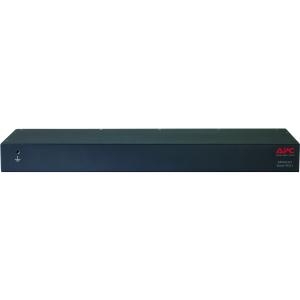

Apc - Schneider Rack Pdu Metered 1u 16a 208/230v (8) C13 Ap7821b

SKU
242515
Brand
MPN
AP7821B
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $874.00 Regular Price $883.00
Buy Now And Earn 874 Reward Points!

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.

Overview
The APC by Schneider Electric Metered Rack Power Distribution Unit (PDU) distributes power to
devices in the rack. It has a sensor that measures the current that the Rack PDU and its attached
devices use. It can be monitored through Web, Telnet, SNMP, SSH, or StruxureWare Data Center
Expert® interfaces.
Outlets: The Rack PDU has eight (8) IEC-C13 outlets.
Digital display: A digital display shows aggregate current being used per phase by the Rack
PDU.
Power cord: The 8 ft (2.5 m) power cord terminates with a IEC-20 connector

Basic
Brand Name: APC by Schneider Electric
Form Factor: Rack-mountable
Input Current: 20 A
Input Receptacles: IEC 60320 C20
Input Voltage: 230 V AC
Output Receptacles: 8 x IEC 60320 C13
Output Voltage: 230 V AC
Product Type: PDU
Rack Height: 1U
General Information
Brand Name: APC by Schneider Electric
Manufacturer Part Number: AP7821B
Manufacturer Website Address: http://www.schneider-electric.com.au
Manufacturer: Schneider Electric SA
Product Name: Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13
Product Type: PDU
Interfaces/Ports
Network (RJ-45): Yes
Management
Management:
  • SNMP
  • Telnet
  • HTTP
  • SSH
Miscellaneous
Environmental Certification: REACH
  RoHS
Environmentally Friendly: Yes
Package Contents:
  • Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13
  • Cord Retention Bracket(s)
  • Installation Guide
  • Rack Mounting Brackets
  • User Manual
Physical Characteristics
Depth: 102 mm
Form Factor: Rack-mountable
Height: 44 mm
Rack Height: 1U
Weight (Approximate): 1.74 kg
Width: 444 mm
Power Description
Input Current: 20 A
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Technical Information
Input Receptacles: IEC 60320 C20
Output Receptacles: 8 x IEC 60320 C13
Warranty
Limited Warranty: 2 Year
