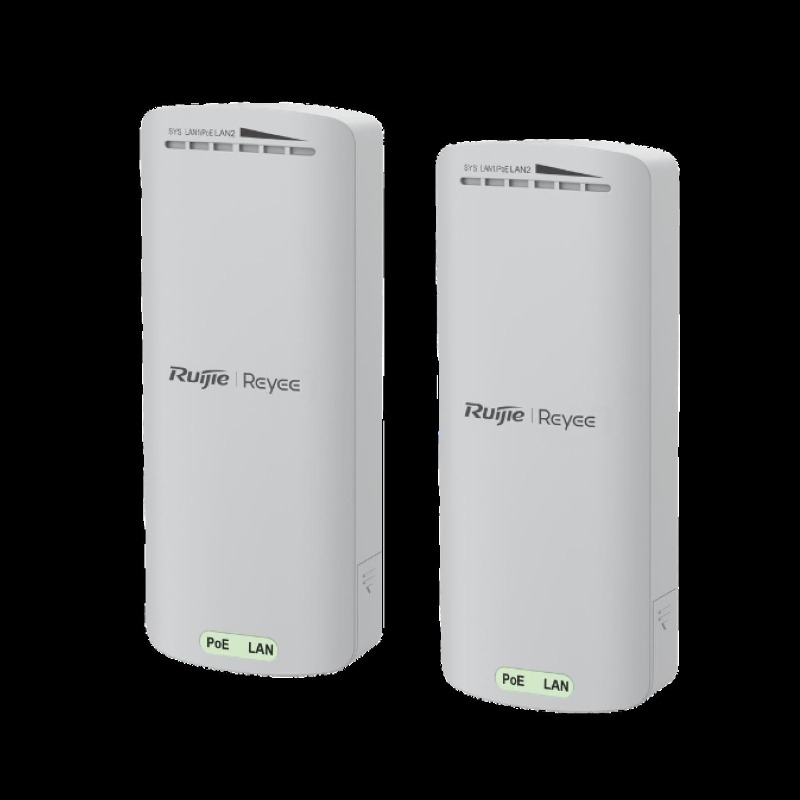

REYEE Ruijie Reyee 2.4GHz Wireless Bridge - 2 Prepaired Units - 300Mbps 8dBi 500M 2x FE - 2 Pack RG-EST100-E
SKU
434037
Brand
MPN
RG-EST100-E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $85.00 Regular Price $98.00
Buy Now And Earn 85 Reward Points!
The Ruijie Reyee RG-EST100-E is a 2.4GHz dual-stream wireless bridge designed for point-to-point connections over distances of up to 500 meters. It's known for its reliability in outdoor environments, offering stable data transmissions for applications like CCTV video backhaul. The device is pre-paired for easy setup and can be monitored via the free Ruijie Cloud and App.
Highlights
- Maximum Distance: 500M
- 2 Pre-Paired Units Included
- Pre-Paired for Easy Setup
- Easy Configuration without Complex Alignment
- IP55 Rated (-30℃~60℃), Suited for Outdoor or Elevator Environments
- Visually intuitive statistics and easy remote configuration, monitoring and management via the free Ruijie Cloud and App
- 3 Year Limited Warranty
| Radio Design | 2.4GHz Single-Band Dual-Stream |
| Transmission Protocol | IEEE 802.11b/g/n |
| Operating Band* | 802.11b/g/n: 2.400‒2.483GHz |
| Antenna | Directional antennas, 8dBi |
| Polarization | Horizontal: 70°,Vertical: 70° |
| Bridging Distance | 500M |
| Spatial Streams | 2x2, MU-MIMO |
| Maximum Throughput | Up to 300Mbps at 2.4GHz |
| Ports | 2x 10/100Mbps ports, port 1 with Passive PoE |
| IP Rating | IP55 |
| Lightning Protection | ±6kV (Common Mode) |
| Installation | Wall-mounted/Pole-mounted |
| Weight | 0.3KG |
| Dimensions (D x W x H) | 165.5mm x 68.7mm x 42mm |
| LED Indicator | LED off: No bridging | LED blinking: ≤ -78dBm | One LED on: -78dBm< RSSI ≤ -72dBm | Two LEDs on: -72dBm< RSSI ≤ -65dBm | Three LEDs on: > -65dBm |
| Hardware Button | 1 reset button |
| Power Supply | 12V DC power supply or 12V DC Passive PoE |
| Power Consumption | < 5W |
| Environment | Operating temperature: -30°C to 60°C (-22°F‒140°F) | Storage temperature: -40°C to 70°C (-40°F‒158°F) | Operating humidity: 5% to 95% (non-condensing) | Storage humidity: 5% to 95% (non-condensing) |
| Warranty | 3 Year Limited Warranty |
| Configuration/Monitoring/Management | Ruijie Cloud and App (Free) |
