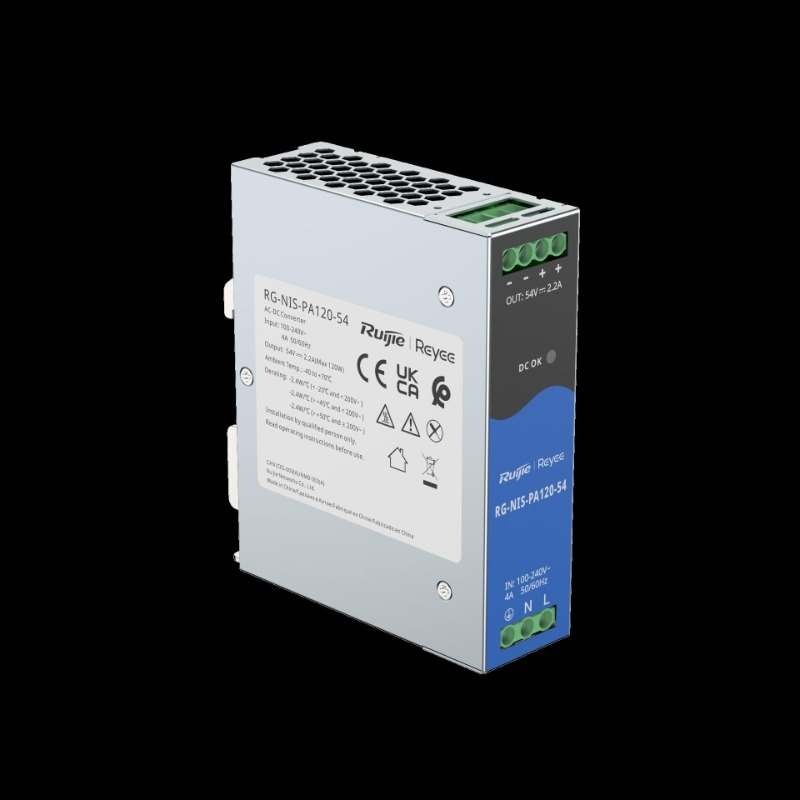

REYEE Ruijie Reyee AC/DC 120W DIN-Rail Power Supply for Industrial Switch RG-NIS-PA120-54
SKU
432923
Brand
MPN
RG-NIS-PA120-54
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $84.00 Regular Price $97.00
Buy Now And Earn 84 Reward Points!
The Ruijie Reyee RG-NIS-PA120-54 is a 120W industrial power supply designed for demanding environments providing a stable 54V DC output. It features a DIN rail mountable design for easy installation, accepts 100-240V AC input and includes overcurrent, overvoltage and short circuit protection. This power supply is used to reliably power various industrial systems.
Highlights
- Input: 100- 240V AC @ 4A
- Output: 52.38-55.62V DC @ 2.2A
- Operating Temperature Range: -40°C to +70°C
- DIN Rail Mountable
- 3 Year Limited Warranty
| Nameplate Input Voltage Range | 100-240V AC |
| Input Voltage Range | 90-264V AC |
| Input Frequency Range | 50/60Hz |
| Input Current | 4A |
| Output Voltage Range | 52.38-55.62V DC |
| Output Current | 2.2A |
| Power Consumption | ≤ 120W |
| Operating Temperature | -40°C to +70°C |
| Fan | No |
| Surge Protection | 4kV |
| Dimensions (W x D x H) | 35mm x 100mm x 125mm |
| Weight | 0.48KG |
| MTBF | > 150,000 |
| Certification | CE |
| Warranty | 3 Year Limited Warranty |
Ruijie Reyee AC/DC 120W DIN-Rail Power Supply for Industrial Switch
