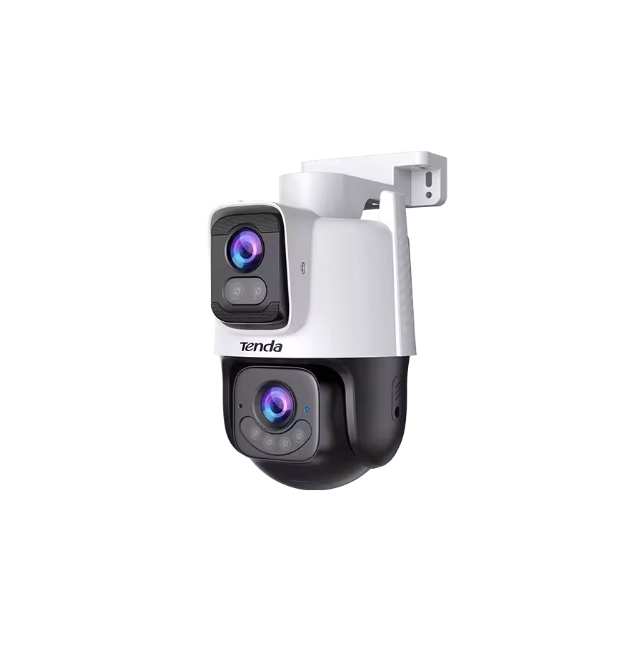

Tenda ( Rh9-Wca ) 6MP Dual-lens Linkage Outdoor Wi-Fi Pan/Tilt Camera RH9-WCA
SKU
441450
Brand
MPN
RH9-WCA
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$109.00
Buy Now And Earn 109 Reward Points!
Tenda ( RH9-WCA ) 6MP Dual-lens Linkage Outdoor Wi-Fi Pan/Tilt Camera
| SKU | RH9-WCA |
|---|---|
| Lens | PT Lens: { "Aperture": "F1.6", "Focal Length": "6 mm", "Field of View": { "Diagonal": "60.4°", "Vertical": "28.2°", "Horizontal": "51.8°" }, "Supported Resolutions": [ "2304 × 1296", "1920 × 1080", "1280 × 720" ] } Quantity: Dual Fixed Lens: { "Aperture": "F1.6", "Focal Length": "4 mm", "Field of View": { "Diagonal": "97.4°", "Vertical": "44.7°", "Horizontal": "82.3°" }, "Supported Resolutions": [ "2304 × 1296", "1920 × 1080", "1280 × 720" ] } |
| Audio | DIY Audio: Supports up to 3 custom audios Audio Codecs: [ "G.711A", "G.711U", "AAC" ] Two-way Audio: Full‑duplex two‑way (built‑in microphone and speaker) Audio Sampling Rate: 8 kHz |
| Brand | Tenda |
| Model | RH9-WCA |
| Power | Power Plug: Ø5.5 mm and Ø2.1 mm Power Supply: 12 V DC, 1 A |
| Video | Bit Rate: 512 kbps – 4096 kbps Frame Rate: 1–25 fps (default 18 fps; 2304×1296 up to 18 fps) Compression: [ "H.265", "H.264" ] Bit Rate Control: [ "CBR", "VBR" ] Main Stream Resolutions: [ "2304 × 1296", "1920 × 1080", "1280 × 720" ] Secondary Stream Resolution: 640 × 360 |
| Storage | Cloud: Cloud storage supported (90‑day free trial reported) MicroSD: Built‑in microSD slot, up to 512 GB NVR/NAS: Support via ONVIF |
| Category | Physical Security |
| Pan/Tilt | Presets: 6 Pan Range: 0°–355° Tilt Range: 0°–90° Patrol Modes: [ "Panoramic patrol", "Preset patrol" ] |
| Warranty | 1 Year (reported) |
| Mechanical | Material: Plastic Mounting Options: [ "Wall", "Ceiling", "Pole" ] |
| Resolution | 6 MP (3 MP + 3 MP) |
| Description | The Tenda RH9-WCA is a 6MP (3MP + 3MP) dual‑lens outdoor pan/tilt camera that combines a 4 mm fixed wide‑angle lens with a 6 mm pan/tilt telephoto lens for simultaneous monitoring and automatic linkage/tracking. It delivers full‑color night vision (spotlights + IR), smart detection (human/vehicle/motion, line crossing, intrusion), customizable sound & light alerts, two‑way audio, ONVIF/NVR support and multiple storage options (microSD up to 512 GB, cloud with trial, NVR/NAS). Built for outdoor use with weatherproof housing and multiple mounting options, it supports H.265/H.264 video, Wi‑Fi 6 connectivity and a suite of image enhancements for clear day/night surveillance. |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Privacy Mask | 4 areas |
| Sub-Category | Video Surveillance |
| Environmental | Storage Humidity: 3% to 95% RH (non‑condensing) Operating Humidity: 10% to 95% RH (non‑condensing) Storage Temperature: -40 °C to 70 °C Operating Temperature: -30 °C to 60 °C |
| Product Title | Tenda RH9-WCA 6MP Dual‑Lens Linkage Outdoor Wi‑Fi Pan/Tilt Camera |
| Certifications | CE RoHS FCC RCM UKCA |
| Additional Notes | Multiple seller/manufacturer listings show minor variations in IP rating, exact dimensions and Wi‑Fi band support; specifications above are consolidated from multiple sources. Supports cloud storage trial (90 days) as reported by several listings. |
| Package Contents | Tenda RH9‑WCA camera Power adapter (3 m cable) Mounting bracket Mounting screws and wall plugs / mounting accessories kit Waterproof kit Installation template Quick installation guide |
| Image Enhancements | DWDR BLC HLC 3D DNR |
| Dimensions & Weight | Package Weight: 802 g Product Weight: 527 g Package Dimensions: 240 × 145 × 193 mm Product Dimensions (L×W×D): 203 × 122 × 62 mm |
| Network & Connectivity | ONVIF: Supported Ethernet: 1 × RJ45, 10/100 Mbps (auto‑negotiation) Security: [ "WEP (64/128)", "WPA/WPA2", "WPA‑PSK/WPA2‑PSK", "WPA3‑SAE" ] Protocols: [ "TCP/IP", "UDP", "ICMP", "HTTP", "HTTPS", "DHCP", "DNS", "DDNS", "RTP", "RTSP", "RTCP", "NTP", "ARP", "WebSockets" ] Encryption: [ "AES‑256 (data transmission)", "Cloud data encryption (ISO/IEC 27018 level reported)", "Account login protections (password / fingerprint / faceID supported on some platforms)" ] Max Wireless Rate: Up to 287 Mbps Wireless Standard: IEEE 802.11 b/g/n/ax (Wi‑Fi 6) Frequency / Channel: 2.4 GHz (listings vary) |
| Night Vision / Illuminator | Modes: [ "Full‑Color Mode (spotlights on)", "Infrared / Black & White Mode (spotlights off)", "Smart Full‑Color Mode (spotlights auto on when motion detected)" ] IR Lights: 6 Spotlights: 6 IR Wavelength: 850 nm Illumination Distance: Up to 30 m |
| Smart Detection & Analytics | AI Features: [ "Human detection", "Vehicle detection", "Motion detection", "Line crossing detection", "Intrusion detection" ] Active Deterrence: Sound & light alarm; customizable audio alerts Dual‑Lens Linkage: Fixed lens detects activity → PT lens auto locks and tracks subject |
| Ingress Protection (weatherproof) | IP65 / IP66 / IP67 reported (varies by listing) |
