Synology Rail kit RKS-02 for all models.
SKU
386063
Brand
MPN
RKS-02
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$167.00
Buy Now And Earn 167 Reward Points!

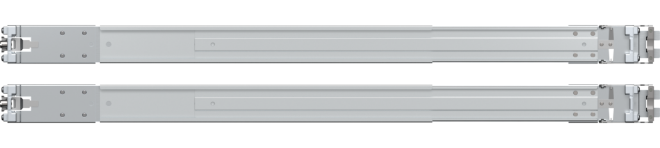

Synology Rail Kit RKS-02 enables easy maintenance access for Synology rackmount models. RKS-02 is backed by Synology's 1-year limited warranty.
Installation requirements
- Mount post width must be equal to or greater than 450 mm
- Panel width must be equal to or greater than 480 mm
- Rack mounting depth: 610 mm to 890 mm
- Rack mounting hole support:
- square hole: at least 9.5 mm x 9.5 mm
- round hole: at least 7.1 mm
Physical specifications for Synology 2U Rail Kit Sliding:
•Mount post width must equal or greater than 451mm
•Panel width must equal or greater than 480mm
•Mounting depth: 650mm~1000mm
•Mount post width must equal or greater than 451mm
•Panel width must equal or greater than 480mm
•Mounting depth: 660mm~840mm
•Mount post width must equal or greater than 451mm
•Panel width must equal or greater than 480mm
•Mounting depth: 570mm~720mm
Compatibility
- FS series:FS6400, FS3600, FS3400, FS3017, FS2017, FS3410
- SA series:SA3600, SA3400, SA3200D
- UC series:UC3200
- 22 series:RS822RP+, RS822+, RS422+, RX1222sas
- 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, FX2421
- 20 series:RS820RP+, RS820+
- 19 series:RS1619xs+, RS1219+, RS819, RXD1219sas
- 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418
- 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RX1217
- 16 series:RS18016xs+, RS2416RP+, RS2416+, RS816, RX1216sas
- 15 series:RS815RP+, RS815+, RS815, RC18015xs+, RXD1215sas, RX415
- 14 series:RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214
- 13 series:RS10613xs+, RS3413xs+, RX1213sas
- 12 series:RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812
- 11 series:RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211
- 10 series:RS810RP+, RS810+, RX410
- 9 series:RS409RP+, RS409+, RS409, RX4
