Rackmount.IT Rack Mount Kit For Sophos Xgs 116 / 118 / 126 / 128 / 136 / 138 (1.3U Or 2U) RM-SR-T12
SKU
413295
Brand
MPN
RM-SR-T12
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$210.00
Buy Now And Earn 210 Reward Points!
Rackmount.IT Rack Mount Kit for Sophos XGS 116 / 118 / 126 / 128 / 136 / 138 (1.3U or 2U)
Datasheet: https://cdn2.rackmount.it/docs/Datasheet_RM-SR-T12_EN.pdf
Datasheet: https://cdn2.rackmount.it/docs/Datasheet_RM-SR-T12_EN.pdf
| SKU | RM-SR-T12 |
|---|---|
| Brand | Rackmount.IT |
| Model | RM-SR-T12 |
| Notes | Some listings/reporting vary on the exact count of included patch cables/couplers (9 vs. 10) and which Sophos models are listed; the most commonly referenced compatible models are XGS 116, 126, 128, 136 and 138. |
| Weight | 5.6 lbs |
| Assembly | Slide appliance into kit, place retainers, connect supplied cables and keystones, fix the power supply to the rack. Typical assembly time: approx. 3–5 minutes. |
| Category | Components > Computer Cases and Accessories |
| Features | Model-specific design for a snug fit Ports and console routed to the front for easy access Fixed power supply to prevent accidental power loss Custom airflow cut-outs for cooling Detachable front plate (allows 2U front appearance) |
| Rack Size | 19" |

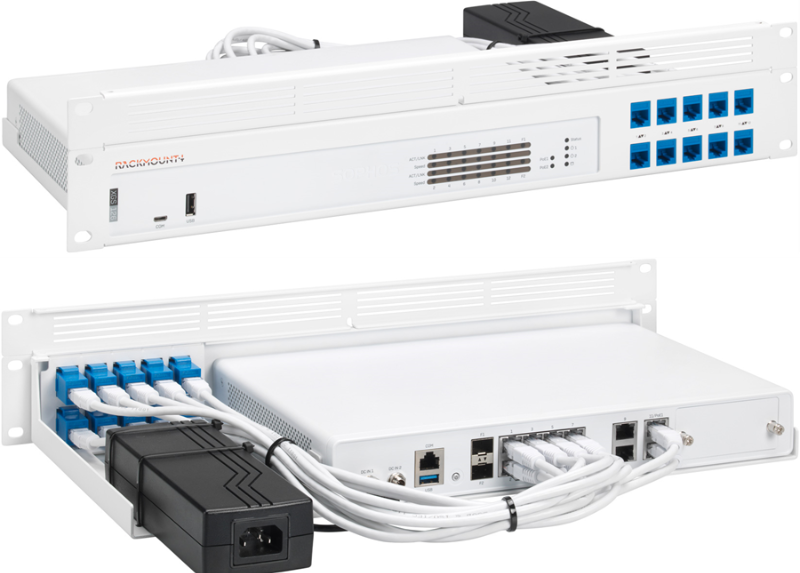

| Description | The Rackmount.IT SORACK RM-SR-T12 is a model-specific rack mount kit that lets you install Sophos desktop appliances into a 19" rack while routing all appliance ports and the console to the front for easy access. The kit features a fixed power supply to prevent accidental power loss, custom airflow cut-outs for proper cooling, and a detachable front plate. It ships with patch cables, RJ-45 couplers, retainers, labels/assembly materials and an installation guide for a quick assembly (typically 3–5 minutes). Available in Signal White (RAL 9003) or Gentian Blue (RAL 5010); other colors available on request. |
| Product Line | SORACK |
| Product Type | Rack mount kit / Rack shelf (network device mounting kit) |
| Custom Colors | Available on project basis |
| Product Title | Rackmount.IT SORACK RM-SR-T12 Rack Mount Kit for Sophos XGS 116/126/128/136/138 |
| Included Cables | 0.5 m patch cables (quantity reported as 9 or 10 depending on source) |
| Package Contents | SORACK RM-SR-T12 rack shelf / SoRack Rackmount.IT front plate Patch cables (0.5 m) RJ-45 couplers Retainers / assembly materials (labels, zip ties) Installation guide |
| Color (available) | Signal White (RAL 9003) Gentian Blue (RAL 5010) |
| Compatible Models | Sophos XGS 116 Sophos XGS 126 Sophos XGS 128 Sophos XGS 136 Sophos XGS 138 |
| Included Couplers | RJ-45 couplers (quantity reported as 9 or 10 depending on source) |
| Height (Rack Units) | 1.3U (2U with supplied front plate) |
| Dimensions (H x W x D) | Metric: 57 x 482 x 217 mm Imperial: 2.3 x 19.0 x 8.5 in |
| Manufacturer Part Number | RM-SR-T12 |
| Front Connections / Console | Console to front: Yes Number of connections brought to front: Sources list 9–10 (product packaging/description varies between 9 or 10 patch cables/couplers) |
Rackmount.IT Rack Mount Kit for Sophos XGS 116 / 118 / 126 / 128 / 136 / 138 (1.3U or 2U)
