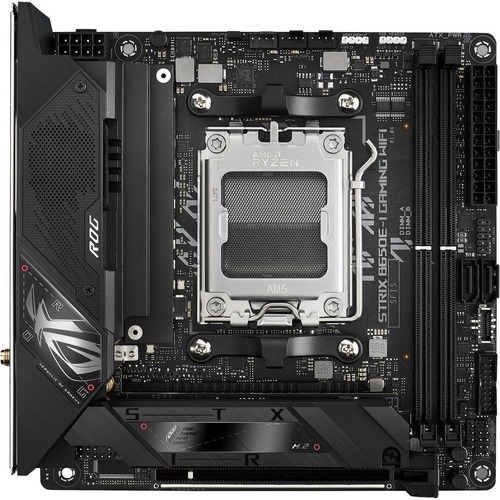

Rog Strix B650E-I Gaming Wifi AMD B650 AM5 Itx Mb ROG Strix B650E-I Gaming Wifi
SKU
394863
Brand
MPN
ROG STRIX B650E-I GAMING WIFI
Warranty
Standard Manufacturer's Warranty
$519.00
Buy Now And Earn 519 Reward Points!
ROG STRIX B650E-I GAMING WIFI
Don't be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it's a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.
DIY-FRIENDLY FEATURES | M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
BIOS FLASHBACK BUTTON
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
FLEXKEY BUTTON
At its default, FlexKey functions as a system reset button, but it can also be easily reassigned to quickly activate Safe Boot or enter the BIOS.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
ALL-ROUND PERFORMANCE
To keep up with the big boys, the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array, giving it a nice share of headroom to push for faster frequencies. But the speed doesn't stop there: memory, graphics cards, and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support.
PCIE 5.0 Fully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.
DYNAMIC OC SWITCHER Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher automatically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance.
Don't be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it's a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.
DIY-FRIENDLY FEATURES | M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
BIOS FLASHBACK BUTTON
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
FLEXKEY BUTTON
At its default, FlexKey functions as a system reset button, but it can also be easily reassigned to quickly activate Safe Boot or enter the BIOS.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
ALL-ROUND PERFORMANCE
To keep up with the big boys, the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array, giving it a nice share of headroom to push for faster frequencies. But the speed doesn't stop there: memory, graphics cards, and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support.
PCIE 5.0 Fully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.
DYNAMIC OC SWITCHER Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher automatically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance.
| Audio Channels | 7.1 |
| Product Type | Gaming Desktop Motherboard |
| Maximum Memory Supported | 64 GB |
| Form Factor | Mini ITX |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Asus ROG |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-6400/PC5-51200 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Number of Memory Slots | 2 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 2 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| HDMI | Yes |
| VGA | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 5 |
| Total Number of PCI Express Slots | 1 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 1 |
| Number of M.2 Interfaces | 2 |
| 2.5Gigabit Ethernet | Yes |
| Manufacturer Part Number | ROG STRIX B650E-I GAMING WIFI |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | B650E-I GAMING WIFI |
| Product Name | Strix B650E-I GAMING WIFI Gaming Desktop Motherboard |
| Product Line | Strix |
| RAID Levels | 10, 1, 0 |
| PCI Express Standard | PCI Express 5.0 |
| HDMI Version | • 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Memory Speed Supported | 4800 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
| Package Contents | • Strix B650E-I GAMING WIFI Gaming Desktop Motherboard • 2 x SATA 6Gb/s cables • 1 x ROG USB2.0 splitter cable • 1 x Panel cable • 1 x Thermal pad for M.2 • 1 x ASUS Wi-Fi moving antennas • 1 x Cable ties package • 1 x M.2 Bracket • 1 x M.2 SSD screw package • 1 x M.2 Q-Latch package for M.2 backplate • 1 x ROG key chain • 1 x ROG Strix sticker • 1 x ROG Strix thank you card • 1 x Rubber Package for M.2 backplate • 1 x User guide |
| Wireless LAN | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Shipping Dimensions | Height 9.5, Width 18.5, Length 23, Shipping Weight 1.32 KG |
