Synology RS1221+ RackStation 8-Bay Scalable Nas ( Rail Kit Optional ) RS1221+
SKU
367104
Brand
MPN
RS1221+
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,680.00
Buy Now And Earn 2680 Reward Points!

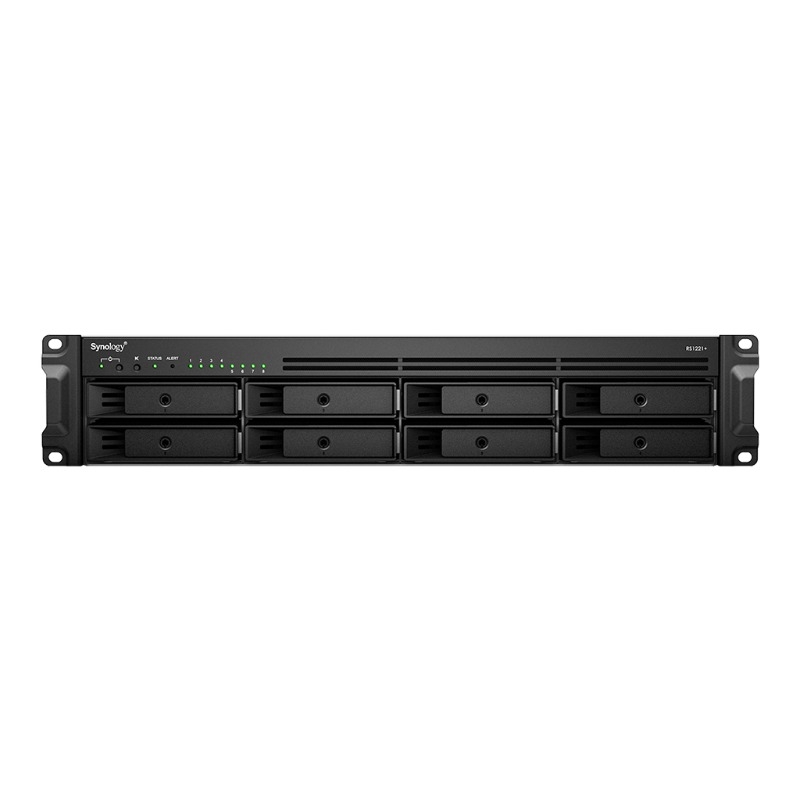

Synology RackStation RS1221+ is a powerful 2U 8-bay rackmount network-attached storage solution, perfect for centralizing data management in short rack-depth environments. The RS1221+ series is ideal at handling heavy file workloads and protecting digital assets in small business environments through the comprehensive data protection options included in the DS operation system.
Specification:
•CPU Frequency: AMD Ryzen V1500B quad core 2.2 Ghz
•Floating Point
•Memory: DDR4 4GB ECC SODIMM(Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA HDD/ SSD x8, (drives not included )
•Hot Swappable HDD
•External HDD Interface: USB 3.0 Port X 2
•Size (HxWxD): 88x430.5x297.6mm
•Weight: 6.9Kg
•LAN: Gigabit x4 supports optional 10GbE add-on card
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
•Easy Replacement System Fan
•Wireless Support (dongle)
•Noise Leve
Specification:
•CPU Frequency: AMD Ryzen V1500B quad core 2.2 Ghz
•Floating Point
•Memory: DDR4 4GB ECC SODIMM(Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA HDD/ SSD x8, (drives not included )
•Hot Swappable HDD
•External HDD Interface: USB 3.0 Port X 2
•Size (HxWxD): 88x430.5x297.6mm
•Weight: 6.9Kg
•LAN: Gigabit x4 supports optional 10GbE add-on card
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
•Easy Replacement System Fan
•Wireless Support (dongle)
•Noise Leve
| CPU | AMD Ryzen V1500B (Ryzen Embedded) |
|---|---|
| SKU | RS1221+ |
| Brand | Synology |
| Model | RS1221+ |
| Notes | One PCIe slot enables addition of 10GbE NIC or M.2 cache via Synology-supported adapter cards. Some third-party or bundled configurations may include drives or expanded memory; the standard RS1221+ ship configuration is diskless with 4 GB RAM installed. |
| Series | RackStation |
| Weight | Approximately 6.9 kg (15.2 lb) |
| Cooling | 2 x 80 mm fans |
| Category | Storage |
| NVMe/M.2 | No onboard M.2; M.2 support available via supported PCIe adapter cards |
| Warranty | Limited 3-year hardware warranty (extendable with Synology extended warranty options) |
| CPU Cores | Quad-core |
| CPU Speed | 2.2 GHz |
| USB Ports | 2 x USB 3.0 Type-A |
| Drive Bays | 8 hot-swappable bays (3.5" and 2.5" SATA) |
| ECC Memory | Yes |
| Description | The Synology RackStation RS1221+ is a compact, short-depth 2U rackmount NAS designed for space-sensitive business and IT deployments. Powered by an AMD Ryzen V1500B 2.2 GHz quad-core processor and 4 GB DDR4 ECC (user-replaceable, 1 x 4 GB installed; expandable to 32 GB), the RS1221+ delivers high multi-user performance with sequential reads up to 2315 MB/s and writes up to 1147 MB/s. It features eight hot-swappable 3.5"/2.5" SATA drive bays, four Gigabit Ethernet ports with link aggregation and failover support, one PCIe 3.0 x8 expansion slot for 10GbE or M.2 cache adapters, two USB 3.0 Type-A ports and one eSATA port. Runs Synology DiskStation Manager (DSM) with enterprise-class software features including Snapshot Replication, Hyper Backup, Synology High Availability, Virtual Machine Manager, AES-NI encryption, Surveillance Station (includes two camera licenses), and broad protocol support (SMB, NFS, AFP, iSCSI, FTP, WebDAV, etc.). Supports RAID modes (Basic, JBOD, RAID 0/1/5/6/10 and Synology Hybrid RAID) and can be expanded with the RX418 expansion unit (adds 4 bays). Diskless configuration; drives and optional memory/network cards sold separately. |
| Form Factor | 2U rackmount (half-depth) |
| Input Power | 100 - 240 VAC, 50/60 Hz |
| Noise Level | Approximately 25.2 dBA (manufacturer-listed) |
| eSATA Ports | 1 x eSATA |
| Memory (Max) | Up to 32 GB DDR4 ECC (2 slots) |
| Power Supply | Single internal power supply (RS1221+). RS1221RP+ is the redundant PSU variant |
| RAID Support | Basic, JBOD, RAID 0, 1, 5, 6, 10, Synology Hybrid RAID (SHR) |
| Sub-Category | Network Attached Storage (NAS) |
| Network Ports | 4 x 1GbE RJ-45 (link aggregation / failover) |
| Product Title | Synology RackStation RS1221+ 8-Bay 2U Rackmount NAS (Diskless) |
| iSCSI Support | Yes (iSCSI target/initiator support, LUN support) |
| PCIe Expansion | 1 x PCIe 3.0 x8 (x4 electrical) - for 10GbE or M.2 adapter cards |
| Expandable With | RX418 expansion unit (adds 4 bays) |
| Operating System | Synology DiskStation Manager (DSM) |
| Memory (Installed) | 4 GB DDR4 ECC (1 x 4 GB) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Software & Features | Snapshot Replication, Hyper Backup, Synology High Availability, Virtual Machine Manager, Surveillance Station (includes 2 camera licenses), File Station, Active Backup suite, AES-NI encryption, VPN Server, MailPlus and collaboration apps |
| Included Accessories | Accessory pack, AC power cord, C13 to C14 power cord (rail kit sold separately unless bundled) |
| Supported Clients/OS | Windows 7 or later, macOS 10.12 or later, Linux; mobile apps for iOS and Android |
| Operating Temperature | 5 to 35 °C (41 to 95 °F) |
| Supported Drive Types | 3.5" SATA HDD, 2.5" SATA HDD/SSD (SATA III / SATA-600) |
| Dimensions (W x D x H) | 482 x 306.6 x 88 mm (19 x 12.1 x 3.5 in) |
| File Systems Supported | Btrfs, EXT4 |
| Performance (Sequential) | Read up to 2315 MB/s; Write up to 1147 MB/s |
| Typical Power Consumption | 49.89 W (typical); 22.64 W (standby) (manufacturer-listed) |
| Certifications / Compliance | BSMI, CCC, CE, EAC, FCC, KC, RCM, RoHS, VCCI |
| Default Drive Configuration | Diskless (no drives included) |
| Surveillance Camera Support | Supports IP cameras (manufacturer-listed support up to ~40 cameras depending on configuration) |
| Package Weight / Box Dimensions | Packaging varies; device weight and device dimensions listed above reflect unit only |
| Max Supported Drives/Capacity Notes | Supports large-capacity SATA drives; expandability via RX418. (Actual maximum raw capacity depends on drive sizes installed.) |
Synology RS1221+ RackStation 8-Bay Scalable NAS ( RAIL KIT optional )
