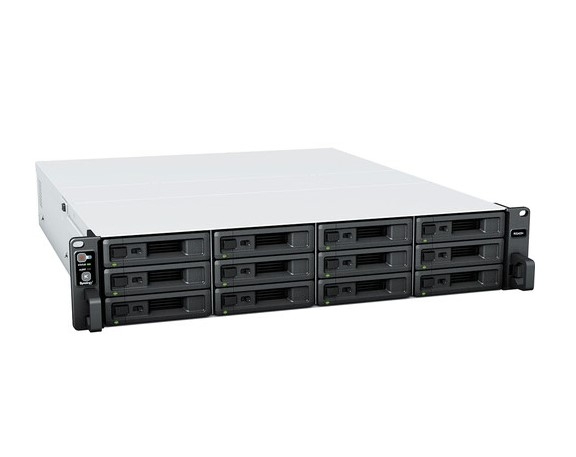

Synology RS2423+ RackStation 12-Bay Scalable Nas ( Rail Kit Optional ) Pls Check For Hdd Compatability Listing. RS2423+
SKU
400464
Brand
MPN
RS2423+
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $4,709.00 Regular Price $5,416.00
Buy Now And Earn 4709 Reward Points!
Synology® RackStation RS2423+ are versatile and cost-effective 2U 12-bay strorage servers for central data storage and sharing, endpoint and server backup, surveillance management, and other business applications. With over 3,500/1,700 MB/s sequential read/write performance, up to 216 TB of raw storage, and the option to boost I/O speeds through SSD caching, the RS2423+ provide flexible storage with strong built-in data protection capabilities and is backed by 3 years warranty.
Specification:
•CPU : AMD Ryzen V1780B
•Floating Point
•Memory: DDR4 8GB (Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA(II) x12 (Hard drive not included) Check HDD compatability listing.
•Hot Swappable HDD
•External HDD Interface: USB 3.0 X 2, Expansion Port x1
•Size (HxWxD): 88x482x578mm
•Weight: 11.9Kg
•LAN: Gigabit x2, 1x 10Gbe
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
â
Specification:
•CPU : AMD Ryzen V1780B
•Floating Point
•Memory: DDR4 8GB (Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA(II) x12 (Hard drive not included) Check HDD compatability listing.
•Hot Swappable HDD
•External HDD Interface: USB 3.0 X 2, Expansion Port x1
•Size (HxWxD): 88x482x578mm
•Weight: 11.9Kg
•LAN: Gigabit x2, 1x 10Gbe
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mm x4
â
| BTU | Access / Typical: ≈ 409.56 BTU/hr (higher reported values vary by configuration) HDD Hibernation / Standby: ≈ 157.78 BTU/hr |
|---|---|
| Brand | Synology |
| Model | RS2423+ |
| Notes | Some reseller listings may include preinstalled memory or drives; the factory/diskless configuration ships with 8 GB DDR4 ECC UDIMM unless otherwise specified. RS2423RP+ is the redundant power supply variant (RP denotes redundant PSU model). |
| Power | AC Input: 100 V to 240 V AC, 50/60 Hz, Single Phase Power Supply: Single (RS2423+) / Redundant option available in RP model Maximum Power Supply Wattage: 500 W |
| Memory | Memory Type: DDR4 ECC UDIMM Memory Slots: 2 Default Memory: 8 GB DDR4 ECC UDIMM Maximum Memory: 32 GB (16 GB x 2) |
| Weight | 11.5 kg (25.4 lb) (diskless weight) |
| Cooling | 3 x 60 mm fans |
| Category | Storage |
| Warranty | 3-year limited hardware warranty (extendable with Synology Extended Warranty options) |
| Processor | CPU Cores: 4 CPU Model: AMD Ryzen V1780B CPU Threads: 8 CPU Quantity: 1 CPU Architecture: 64-bit CPU Base Frequency: 3.35 GHz CPU Turbo Frequency: 3.6 GHz |
| USB Ports | 2 x USB 3.2 Gen 1 (USB-A) |
| Drive Bays | 12 |
| Description | The Synology RackStation RS2423+ is a 2U, 12-bay rackmount NAS designed for SMBs requiring high-performance, expandable centralized storage. Powered by an AMD Ryzen V1780B quad-core (8-thread) 64-bit CPU and 8 GB DDR4 ECC UDIMM (expandable to 32 GB), the RS2423+ delivers up to 3,500/1,700 MB/s sequential read/write throughput and up to ~155K/79K random read/write IOPS. It includes 1 x 10GbE RJ-45 and 2 x 1GbE RJ-45 ports, 2 x USB 3.2 Gen 1 ports, a PCIe 3.0 x8 (x4 electrical) expansion slot, and a mini-SAS HD expansion port for RX1223RP expansion units (expands to a maximum of 24 bays). Running Synology DiskStation Manager (DSM), the RS2423+ supports Btrfs and ext4, a wide range of RAID modes (including Synology Hybrid RAID), SSD caching, comprehensive backup and file-sharing protocols, and Synology applications for drive and surveillance management. |
| Form Factor | 2U rackmount (19") |
| Noise Level | 56.2 dB(A) (typical per Synology product specs) |
| Performance | SSD Caching: Supported (via PCIe/network/storage expansion options) Random Read IOPS: up to 155,000 Random Write IOPS: up to 79,000 Sequential Read Throughput: up to 3,500 MB/s Sequential Write Throughput: up to 1,700 MB/s |
| Product Line | RackStation |
| Sub-Category | Network Attached Storage (NAS) |
| Hot-Swappable | Yes (hot-swappable drive trays) |
| Network Ports | 1GbE RJ-45: 2 10GbE RJ-45: 1 Total RJ-45 Ports: 3 Link Aggregation / Failover: Supported |
| Product Title | Synology RackStation RS2423+ 12-Bay 10GbE Rackmount NAS (8GB DDR4 ECC, Expandable to 32GB) |
| Certifications | FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS UL |
| Expansion Port | Mini-SAS HD |
| PCIe Expansion | Slot: 1 x PCIe 3.0 x8 slot (x4 electrical) |
| Supported RAID | Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| Operating System | Synology DiskStation Manager (DSM) |
| Package Contents | Main unit x1 Accessory pack x1 AC power cord x1 Quick installation guide x1 |
| Storage Humidity | 5% to 95% RH |
| Power Consumption | Typical / Access: ≈ 114.9 W (reported typical) HDD Hibernation / Standby: ≈ 42.3 - 46.2 W (reported values) |
| Storage Expansion | Expansion Unit: RX1223RP (mini-SAS HD) Max Expansion Units Supported: 1 |
| Dimensions (HxWxD) | 88 mm x 482 mm x 552 mm (3.5" x 19" x 21.7") |
| Operating Humidity | 8% to 80% RH |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Supported Protocols | SMB1 (CIFS) SMB2 SMB3 NFSv3 NFSv4 NFSv4.1 NFS Kerberized sessions iSCSI HTTP HTTPS FTP SNMP LDAP CalDAV |
| Maximum Local Groups | 256 |
| Optional Accessories | DDR4 ECC UDIMM: D4EU02-8G / D4EU02-16G Expansion Unit: RX1223RP Enterprise 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Cards: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail Kit Sliding: RKS-02 |
| Surveillance Station | Default Licenses: 2 Max IP Cameras and Total FPS (H.264): { "3M": "75 channels, 1500 FPS", "4K": "55 channels, 550 FPS", "5M": "75 channels, 900 FPS", "1080p": "75 channels, 2100 FPS" } Max IP Cameras and Total FPS (H.265): { "3M": "75 channels, 2250 FPS", "4K": "75 channels, 900 FPS", "5M": "75 channels, 1500 FPS", "1080p": "75 channels, 2250 FPS" } |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Supported Drive Types | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD |
| Maximum Shared Folders | 256 |
| Rack Installation Support | 4-post 19" rack (Synology Rail Kit RKS-02 supported) |
| Maximum Single Volume Size | 200 TB (requires 32 GB memory) 108 TB |
| Maximum Local User Accounts | 1024 |
| Maximum Internal Volume Number | 64 |
| Supported File Systems (External) | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| Supported File Systems (Internal) | Btrfs ext4 |
| Maximum Drive Bays with Expansion Unit | 24 (with 1 x RX1223RP expansion unit) |
| Synology Drive - Maximum Number of Users | 680 |
| Synology Drive - Maximum Number of Hosted Files | 5000000 |
Synology RS2423+ RackStation 12-Bay Scalable NAS ( RAIL KIT optional ) Pls check for HDD compatability listing.
