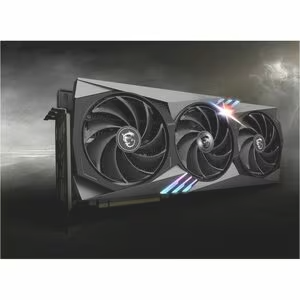

MSI GeForce RTX 4080 SUPER 16G GAMING X TRIO RTX 4080 SUPER 16G GAMING X TRIO

SKU
415225
Brand
MPN
RTX 4080 SUPER 16G GAMING X TRIO
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,945.00
Buy Now And Earn 1945 Reward Points!

GeForce RTX 4080 SUPER 16G GAMING X TRIO

NVIDIA Ada Lovelace Architecture Designed to Give You Superpowers

New Streaming Multiprocessors

  • Up to 2X performance and power efficiency

Fourth-Gen Tensor Cores

  • Up to 4X performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

  • Up to 2X ray tracing performance

STRENGTH AND ARTISTRY

MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, export competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.

TORX FAN 5.0

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

TORX FAN 5.0

A fan cowl extends a bit beyond the general enclosure to lengthen the wind's passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.

COPPER BASEPLATE FACING THE HEAT HEAD-ON

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

KEEPING THE CORE COOL

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.

Airflow Control improves airflow dynamics through the Wave Curved 2.0, updated deflectors, and Air Antegrade fin design for optimizing the balance between cooling and quieter acoustics.

AIR ANTEGRADE FIN

Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

HARDENING EVERY DETAIL

High-Efficiency Carbonyl Inductors (HCI)

Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electrical filtering.

DrMos

DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Change Focus When Needed

Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

Effective Thermal Padding

An abundance of clay-based thermal pads provide additional heat dissipation for board components.

Hardened Defenses

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.


Features
  • TRI FROZR 3
  • : Stay cool and quiet. MSI's TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
  • TORX FAN 5.0
  • : Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
  • Copper Baseplate
  • : Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
  • Core Pipe
  • : Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
  • Airflow Control:
  • Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
  • Anti Bending
  • : A die-cast anti-bending plate reinforces the card while thermal pads allow cooling to reach critical component underneath.
  • Metal Backplate:
  • Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
  • Dual BIOS
  • : Dual BIOS lets you set the priority to full performance in GAMING mode or low noise in SILENT mode.
Guides & Documents
Miscellaneous
Platform SupportedPC
Power Description
Power Supply Wattage850 W
Power Connector1x 16-pin
Memory
Standard Memory16 GB
Memory TechnologyGDDR6X
Bus Width256 bit
Interfaces/Ports
Host InterfacePCI Express 4.0
HDMIYes
DisplayPortYes
Number of DisplayPort Outputs3
Number of HDMI Outputs1
General Information
Product TypeGraphic Card
Manufacturer Part NumberRTX4080SUPER16GGAMINGXTRIO
Manufacturer Website Addresshttp://au.msi.com
ManufacturerMSI
Product ModelGeForce RTX 4080 SUPER 16G GAMING X TRIO
Product NameGeForce RTX 4080 SUPER 16G GAMING X TRIO Graphic Card
Brand NameMSI
Processor & Chipset
Chipset ManufacturerNVIDIA
Chipset ModelRTX 4080 SUPER
Chipset LineGeForce
Chipset SeriesRTX
GPU Boost Clock2.63 GHz
Physical Characteristics
Weight (Approximate)1.88 kg
Form FactorPlug-in Card
Length337 mm
Cooler TypeFan Cooler
Height67 mm
Width140 mm
Technical Information
API SupportedDirectX 12 Ultimate
OpenGL 4.6
FeaturesTriple-fan Cooler
Number of Monitors Supported4
Maximum Digital Display Resolution7680 x 4320
CUDA Cores10240
