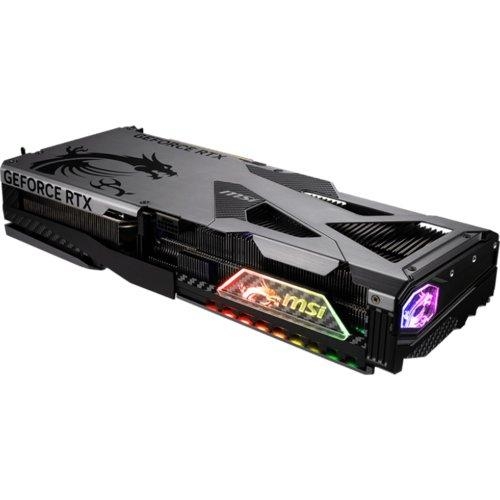

Msi GeForce RTX 5070 12G VANGUARD SOC RTX 5070 12G VANGUARD SOC
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
MSI CENTER | BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.
AFTERBURNER | PRECISION CONTROLS, UNLIMITED POWER
MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It's free and compatible with most graphics cards.
MSI APP PLAYER | SEAMLESS GAMING EXPERIENCE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
- HYPER FROZR THERMAL DESIGN:
- An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.
- STORMFORCE FAN:
- Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Advanced Vapor Chamber:
- Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
- Core Pipes:
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Filled Fins:
- Updated heat pipe pathing has allowed more space for additional heatsink fins.
- Air Antegrade Fin 2.0:
- The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- Wave Curved 4.0:
- Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Metal Backplate:
- A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center:
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner:
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
Miscellaneous | |
Additional Information | G-SYNC technology: Yes |
Power Description | |
Power Supply Wattage | 650 W |
Power Connector | 1x 16-pin |
Memory | |
Standard Memory | 12 GB |
Memory Technology | GDDR7 |
Bus Width | 192 bit |
Interfaces/Ports | |
Host Interface | PCI Express 5.0 |
HDMI | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
Number of HDMI Outputs | 1 |
Processor & Chipset | |
Chipset Manufacturer | NVIDIA |
Chipset Model | RTX 5070 |
Chipset Line | GeForce |
Chipset Series | RTX |
GPU Clock | 2640 MHz |
Technical Information | |
API Supported | DirectX 12 |
HDCP Supported | Yes |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 6144 |
Physical Characteristics | |
Weight (Approximate) | 1503 g |
Form Factor | Plug-in Card |
Length | 337 mm |
Cooler Type | Fan Cooler |
Height | 61 mm |
Width | 140 mm |
General Information | |
Product Type | Graphic Card |
Manufacturer Part Number | RTX 5070 12G VANGUARD SOC |
Manufacturer Website Address | http://www.msi.com |
Manufacturer | MSI |
Product Model | GeForce RTX 5070 12G VANGUARD SOC |
Product Name | GeForce RTX 5070 12G VANGUARD SOC Graphic Card |
Brand Name | MSI |
