Instant On 1960 8G 4P 2.5 2XT 2XF Switch S0F35A
SKU
408144
Brand
MPN
S0F35A
Warranty
Standard Manufacturer's Warranty
$2,796.00
Buy Now And Earn 2796 Reward Points!

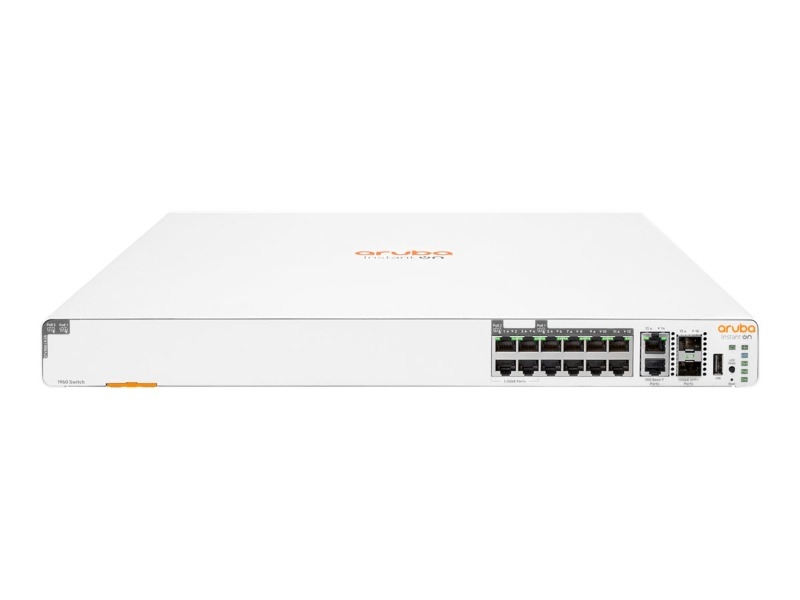

HPE Aruba Instant On 1960 - Switch - Managed - 4 x 2.5GBase-T + 8 x 100/1000/10GBase-T + 2 x 100/1000/10GBase-T + 2 x 10 Gigabit SFP+ - rack-mountable - PoE (480 W)
| Ports | 4 x 2.5GBase-T + 8 x 100/1000/10GBase-T + 2 x 100/1000/10GBase-T + 2 x 10 Gigabit SFP+ |
| Power | AC 100-240 V (50/60 Hz) |
| Weight | 5.24 kg |
| Capacity | MAC address entries: 16000 ? Routing table entries (static): 992 ? IPv6 routes (static): 512 ? IPv4 routes (static): 512 |
| Features | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED) |
| PoE Budget | 480 W |
| Device Type | Switch - 16 ports - Managed - stackable |
| Performance | Throughput: 172 Mbps ? Switching capacity: 116 Gbps ? Latency (100 Mbps): 4.1 ?s ? Latency (1 Gbps): 1.8 ?s ? Latency (10 Gbps): 2.8 ?s ? Latency (2.5 Gbps): 6.7 ?s |
| Enclosure Type | Rack-mountable 1U |
| Routing Protocol | Static IP routing |
| Dimensions (WxDxH) | 44.3 cm x 35 cm x 4.39 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Jumbo Frame Support | 9216 bytes |
| Product Description | HPE Aruba Instant On 1960 - switch - 16 ports - Managed - rack-mountable |
| MAC Address Table Size | 16000 entries |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
HPE Aruba Instant On 1960 - Switch - Managed - 4 x 2.5GBase-T + 8 x 100/1000/10GBase-T + 2 x 100/1000/10GBase-T + 2 x 10 Gigabit SFP+ - rack-mountable - PoE (480 W)
