System Sensor Photo Smoke Alarm 4WIRE 12V/24V 9V Batt AS3786 3YR S109792
SKU
386729
Brand
MPN
S109792
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $75.00 Regular Price $87.00
Buy Now And Earn 75 Reward Points!

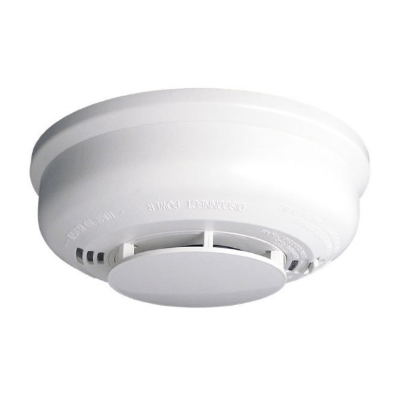

The Honeywell 2012/24AUSI is designed to provide early warning of developing fires for occupants of residential and commercial buildings. The 2012/24AUSI is a photoelectric smoke detector that is specifically designed for open area protection. These multi-voltage, 4 wire smoke alarms can be connected to many third-party devices such as security alarm systems and access control systems. The 2012/24AUSI is supplied complete with mounting ring and 9VDC back-up battery. The 2012/24AUSI meets the AS3786 Australian Standards
| Size | 55mm (H) × 135mm (diameter) |
| Weight | 220 grams |
| Back-up Battery | 9 VDC carbon zinc battery |
| RELATIVE HUMIDITY | 5% to 93% R.H |
| Relay Contact Rating | 1 Form C, 1A @ 30 V(DC or AC) |
| Supply Voltage Range | 10 VDC to 30 VDC |
| Maximum Alarm Current | 65 mA maximum average @10~30VDC |
| Maximum Standby Current | 60 μA maximum average |
| P-horn Sound Output Level | 85 dBA @ 3m |
| Operating Temperature Range | 0˚C to 50˚C |
The Honeywell 2012/24AUSI is designed to provide early warning of developing fires for occupants of residential and commercial buildings. The 2012/24AUSI is a photoelectric smoke detector that is specifically designed for open area protection. These multi-voltage, 4 wire smoke alarms can be connected to many third-party devices such as security alarm systems and access control systems. The 2012/24AUSI is supplied complete with mounting ring and 9VDC back-up battery. The 2012/24AUSI meets the AS3786 Australian Standards
