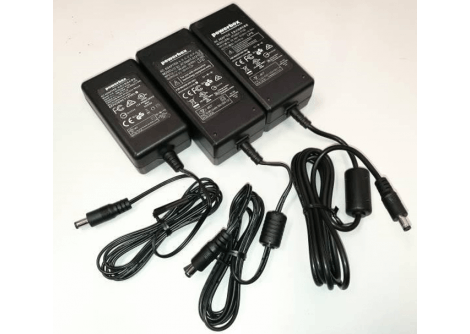

Powerbox Pow-12 Pp 12VDC 5A 60W Inline Psu Incl Iec-C14 1YR S3192A
SKU
442084
Brand
MPN
S3192A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$81.00
Buy Now And Earn 81 Reward Points!
- 12Vdc 60W desktop supplies
- Australian / New Zealand approved (RCM)
- Safety: AS/NZS60950.1
- 60W: Class I
- Certificates of Approval
- ESV170084. ESV170076 & ESV170077
- EESS Level 3 Registered
- EMC Meets EN55022 Class B
- Meets EN61000-3-2 and EN61000-3-3
- Energy Efficiency: DOE Mark VI
- Australian GEMS (EPS) Determination 2014
- Registration Nos. APS4971. APS4967 & APS4987
- Short circuit and overvoltage protection
- Australian / New Zealand approved (RCM)
- Safety: AS/NZS60950.1
- 60W: Class I
- Certificates of Approval
- ESV170084. ESV170076 & ESV170077
- EESS Level 3 Registered
- EMC Meets EN55022 Class B
- Meets EN61000-3-2 and EN61000-3-3
- Energy Efficiency: DOE Mark VI
- Australian GEMS (EPS) Determination 2014
- Registration Nos. APS4971. APS4967 & APS4987
- Short circuit and overvoltage protection
| 1 | ATS065T-P120 9 POWERBOX POW-12 PP 12VDC 5A 60W INLINE PSU EXCL IEC-C14 1YR $57.00 |
| QTY | SKU SOH DESCRIPTION PRICE(EX GST) |
| Voltage range | 90 to 264Vac |
| Input current | 60W 1.4A max |
| Frequency | 47 to 63Hz |
| Inrush current | 80A max @ 240Vac |
| Output Voltage | 12Vdc |
| Output Voltage Tolerance ±5% | ±5% |
| Output Current | 4.2A / 5A |
| Output Power | 60W |
| Line regulation | ±5% max 90-264Vac |
| Load regulation | ±5% max 0% to 100% load |
| Short circuit protection | Continuous, non-latching |
| Overcurrent Protection | Hiccup overcurrent protection >160% of rated current |
| Over voltage protection | 180% of voltage typical |
| Operating temperature | 0°C to +40°C |
| Cooling | Natural Convection |
| Storage temperature | -20°C to +80°C |
| Humidity | 20-80%RH, non-condensing |
| Safety | AS/NZS60950.1 : Class I |
| EMC | EN55022 Class B EN61000-3-2, EN61000-3-3 |
| Emissions | CISPR 11 Group1 Class B EN61000-3-2, EN61000-3-3 |
| Immunity | IEC61000-4-2, -3, -4, -5, -6 IEC61000-4-8, -11 |
| Energy Efficiency | DOE Mark VI Australian GEMS (EPS) Determination 2014 |
| Dimensions (LxWxH) | 115x53x38mm |
| Weight | 310g |
| AC inlet | IEC60320-1/C14 |
| Output connector | Straight, hollow barrel 5.5 x 2.1 x 9.5mm (ODxIDxL) Centre positive |
- 12Vdc 60W desktop supplies
