Fsh Fss1-F Flush Mount High Security Reed 5YR S4595A
SKU
424343
Brand
MPN
S4595A
Warranty
Standard Manufacturer's Warranty
$737.00
Buy Now And Earn 737 Reward Points!

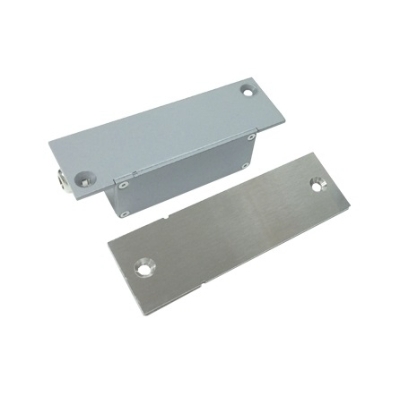

The FSS1 Series of High Security Door Monitoring Sensor are designed to provide a true high security solution for door position monitoring.
It is a state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.
Specifically developed for high security applications in government and military installations, the FSS1 Series High Security Door Monitoring Sensor consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the magnetic face plate. One sensor is used to detect the position of the magnetic face plate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique magnetic face plate in relation to the memorised pattern. The FSS1 is equipped with sophisticated anti-tamper facilities.
The FSS1 has been named a Platinum winner of the 2022 Security Today Govies Government Security Award for the Intrusion Detection & Prevention Solutions category.
The product is listed in the Security Equipment Evaluated Product List (SEEPL).
It is a state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.
Specifically developed for high security applications in government and military installations, the FSS1 Series High Security Door Monitoring Sensor consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the magnetic face plate. One sensor is used to detect the position of the magnetic face plate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique magnetic face plate in relation to the memorised pattern. The FSS1 is equipped with sophisticated anti-tamper facilities.
The FSS1 has been named a Platinum winner of the 2022 Security Today Govies Government Security Award for the Intrusion Detection & Prevention Solutions category.
The product is listed in the Security Equipment Evaluated Product List (SEEPL).
| PART No: | FSS1-F |
| PATENTS: | Patents granted and pending worldwide based on PCT/AU2014/000210 |
| FUNCTION: | Flush mount version (morticed) |
| APPROVALS: | Rated to IP67 | RCM Compliant | SCEC Approved, Security Level 4 (SL4) rated |
| TOLERANCE: | Door Gap 1 - 7mm Door Movement 15mm |
| DIMENSIONS: | L=110mm D=32mm W=35mm |
| MANUFACTURE: | Designed & Manufactured in Australia |
| ARRAY MAGNETS: | Up to 8 magnets for unique magnetic footprint |
| SECURITY LEVEL: | SCEC Security Level 4 (SL4) Approved | U.L. 634 Level 2 |
| VOLTAGE / CURRENT: | 10 – 30VDC/<10mA - Can now be powered by Type 1/1A and Class 5 E.O.L Modules |
| HALL EFFECT SENSORS: | 7 |
| ALARM & TAMPER CONTACTS: | N.C. common N.O., 0.2A @ 30V plus changeover contacts for access control system |
| END OF LINE COMPATIBILTY: | Space for end-of-line encryption modules, or resistor/s |
The FSS1 Series of High Security Door Monitoring Sensor are designed to provide a true high security solution for door position monitoring.
