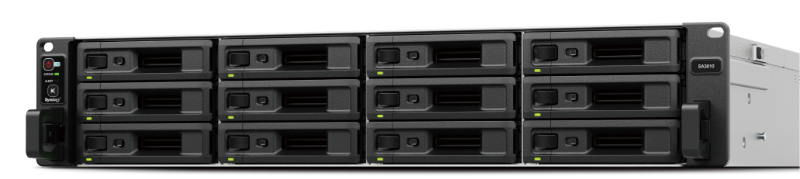

Synology SA3410 RackStation 12-Bay Scalable Nas ( Rail Kit Optional ) With Redundant Power.CHECK Hdd Compatabilty Lis,Synology Drives Only. SA3410
SKU
406674
Brand
MPN
SA3410
Warranty
Standard Manufacturer's Warranty
$11,938.00
Buy Now And Earn 11938 Reward Points!
The Synology SA3600 and SA3400 Series is designed to provide large enterprises and studios with scalable, reliable data storage. Accommodating up to 1.728 PB1 of raw storage capacity and different network configurations, these 12-bay rackmount servers are perfect for businesses that need to store large volumes of data without sacrificing performance and dependability and is backed by Synology's 5 year warranty.
Specification:
•CPU Frequency: Intel Xeon D-1541
•Floating Point
•Memory: DDR4 16GB ECC RDIMM RAM(Expandable, up to 128GB)
•Internal HDD/SSD: 3.5" or 2.5" SAS/SATA HDD/SSD x12
•Max Internal Capacity: 12 x HDD (Capacity may vary by RAID types)
•Hot Swappable HDD
•External HDD Interface: USB3.0X2,1 x expansion port
•Size (HxWxD): 88x430.5x692mm
•Weight: 14.5Kg
•LAN: Gigabit x4 , 2x 10gbe RJ45
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mmx32m x4
•Easy Rep
Specification:
•CPU Frequency: Intel Xeon D-1541
•Floating Point
•Memory: DDR4 16GB ECC RDIMM RAM(Expandable, up to 128GB)
•Internal HDD/SSD: 3.5" or 2.5" SAS/SATA HDD/SSD x12
•Max Internal Capacity: 12 x HDD (Capacity may vary by RAID types)
•Hot Swappable HDD
•External HDD Interface: USB3.0X2,1 x expansion port
•Size (HxWxD): 88x430.5x692mm
•Weight: 14.5Kg
•LAN: Gigabit x4 , 2x 10gbe RJ45
•Link Aggregation
•Wake on LAN/WAN
•System Fan: 80x80mmx32m x4
•Easy Rep
| SKU | SA3410 |
|---|---|
| Brand | Synology |
| Model | SA3410 |
| Weight | 31.97 lb (approx. 14.5 kg) |
| Cooling | 4 x 80 mm fans |
| Category | Storage |
| Warranty | Limited 5-year warranty |
| CPU Cores | 8 |
| CPU Speed | 2.1 GHz base / 2.7 GHz turbo |
| Interface | SAS-3, SATA III (SATA 6Gb/s) |
| Processor | Intel Xeon D-1541 |
| USB Ports | 2 x USB-A 3.2 Gen 1 (USB 3.0) |
| Dimensions | Depth: 28.5 in (724 mm) Notes: Dimensions reported as ~28.5 x 19 x 3.5 in (724 x 482 x 88 mm) Width: 19 in (482 mm) Height: 3.5 in (88 mm) (2U) |
| Drive Bays | 12 |
| Encryption | AES-NI hardware encryption supported |
| PCIe Slots | 2 x PCIe 3.0 x8 (x8 electrical) |
| Description | The Synology SA3410 is a 2U, 12-bay rackmount NAS designed for enterprise data centers, studios and growing businesses that need scalable, high-performance storage. It ships diskless and is powered by an Intel Xeon D-1541 8-core processor (2.1 GHz base, 2.7 GHz turbo) with 16 GB DDR4 ECC memory (installed) expandable to 128 GB across 4 DIMM slots. The SA3410 supports 3.5" and 2.5" SAS-3 and SATA III drives, delivers sequential read/write performance up to ~6,200/3,000 MB/s, and can scale up to 96 total drive bays (up to seven RX1222sas expansion units) for up to ~1.7 PB raw capacity. Network connectivity includes dual 10GbE RJ-45 and four Gigabit RJ-45 ports, plus expansion via two PCIe 3.0 x8 slots for optional 10/25/40GbE or Fibre Channel adapters. Enterprise features include RAID levels 0/1/5/6/10, RAID F1, Basic, JBOD, AES-NI encryption, iSCSI support, broad protocol support (SMB/NFS/AFP/FTP/WebDAV/iSCSI/etc.), and Synology DiskStation Manager (DSM, DSM 7.3 series supported). Redundant 550 W power supplies, 4 x 80 mm fans, and hardware/software redundancy help ensure availability. Includes accessory pack, 2 AC power cords and Quick Installation Guide. Limited 5-year warranty. |
| Form Factor | 2U rackmount |
| Memory Type | DDR4 ECC |
| Noise Level | 49.8 dBA |
| Power Input | 100 - 240 VAC, 50/60 Hz |
| Serial Port | 1 x 9-pin serial (reported) |
| Memory Slots | 4 |
| Product Type | NAS enclosure / server (diskless) |
| Sub-Category | Network Attached Storage (NAS) |
| Network Ports | 2 x 10 GbE RJ-45 (10GBASE-T), 4 x 1 GbE RJ-45 |
| Product Title | Synology SA3410 12-Bay 2U Rackmount NAS Enclosure (Diskless) |
| iSCSI Support | Yes — reported support up to 512 LUNs / 256 targets |
| Drive Bay Type | 12 x 2.5"/3.5" (hot-swap) |
| Maximum Memory | 128 GB |
| Package Weight | 43.3 lb (reported) |
| Power Supplies | Dual hot-swappable 550 W (redundant) |
| Management Port | 1 x RJ-45 management (reported) |
| Included Storage | Diskless (no HDD/SSD included) |
| Installed Memory | 16 GB DDR4 ECC (RDIMM) |
| Operating System | Synology DiskStation Manager (DSM); DSM 7.3 series / DSM 7.3.2 supported (downloads available) |
| Package Contents | Main unit (SA3410) Accessory pack 2 x AC power cords Quick Installation Guide |
| Power Consumption | Access/Typical: 136.15 W Standby/Hibernation: 58.48 W |
| Drive Compatibility | 3.5" SAS HDD, 2.5" SAS SSD, 3.5" SATA HDD, 2.5" SATA SSD |
| Supported Protocols | SMB/CIFS (SMB 2.0/3.0) AFP NFS (v3/v4/v4.1) FTP WebDAV iSCSI HTTP/HTTPS SNMP LDAP CalDAV Telnet SSH VPN (PPTP, OpenVPN, L2TP) |
| Accessories Included | Accessory pack 2 x AC power cords Quick Installation Guide |
| Maximum Raw Capacity | Up to ~1.7 PB when fully expanded (up to 96 bays via seven RX1222sas expansion units); single unit raw capacity reported as ~1740.8 TB when fully populated across expansion |
| RAID Levels Supported | RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID F1 Basic JBOD |
| Noise and Environmental | Relative Humidity: 5% to 95% RH (reported) Storage Temperature: -20°C to 60°C (reported) Operating Temperature: 0°C to 35°C (32°F to 95°F) (reported) |
| VPN Connections (Server) | 60 (reported) |
| Certifications & Listings | BSMI CCC CE EAC FCC RCM RoHS UKCA UL VCCI |
| Memory Configuration Notes | Installed 16 GB; user-replaceable DIMMs; supports up to 128 GB total |
| Expansion Card Types Supported | 10/25/40GbE adapters, Fibre Channel adapter cards (via PCIe slots) |
| Expandable To (Expansion Units) | Up to 7 x RX1222sas (expand to 96 total bays) |
Synology SA3410 RackStation 12-Bay Scalable NAS ( RAIL KIT optional ) with Redundant Power.CHECK HDD COMPATABILTY LIS,SYNOLOGY DRIVES ONLY.
