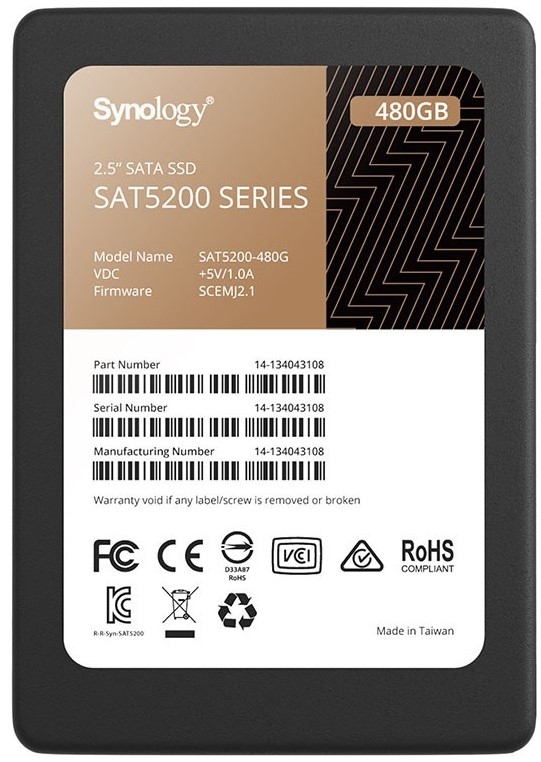

Synology SAT5200 2.5" 480GB Enterprise-Class Sata SSD SAT5200-480G
SKU
367105
Brand
MPN
SAT5200-480G
Warranty
Standard Manufacturer's Warranty
$371.00
Buy Now And Earn 371 Reward Points!
Synology SAT5200 SATA SSD delivers stable performance of over 60,000 4K random write IOPS for demanding I/O.
Suitable for intensive and mixed storage workloads with 1.3 DWPD. Built for Synology Systems. Proven interoperability with Synology systems through rigorous validation.
Suitable for intensive and mixed storage workloads with 1.3 DWPD. Built for Synology Systems. Proven interoperability with Synology systems through rigorous validation.
| MPN | SAT5200480G |
|---|---|
| SKU | SAT5200-480G |
| UPC | 0846504003846 |
| DWPD | 1.3 |
| GTIN | 0846504003846 |
| MTBF | 1,500,000 hours |
| Brand | Synology |
| Model | SAT5200-480G |
| Features | Power Loss Protection (PLP) End-to-end data path protection Enterprise-grade endurance and reliability |
| Warranty | 5-year limited warranty |
| Interface | SATA III (6 Gb/s / Serial ATA-600) |
| Drive Type | Internal SSD |
| Description | Enterprise-class 2.5" SATA SSD designed for 24x7 mixed and intensive workloads. The Synology SAT5200-480G delivers up to 530 MB/s sequential read and 500 MB/s sequential write, high random I/O (up to 95,000 4KB read IOPS / 55,000 4KB write IOPS steady state), and enterprise endurance (1145 TBW, 1.3 DWPD). Built-in power loss protection and end-to-end data path protection help preserve data integrity for NAS, server, and PC deployments. Backed by a 5-year limited warranty and compliance with major certifications (FCC, CE, BSMI, VCCI, KC, RCM, RoHS). |
| Form Factor | 2.5" (7 mm) |
| Product Title | Synology SAT5200-480G 480GB 2.5" (7mm) SATA III SSD |
| Supported Bay | 2.5" |
| 24x7 Operation | Yes |
| Certifications | FCC CE BSMI VCCI KC RCM RoHS |
| Supply Voltage | 5 V (±10%) |
| Compatible With | PC Laptop NAS (Synology systems and other NAS devices) Servers |
| Dimensions (mm) | Depth: 100 mm Width: 69.85 mm Height: 7 mm |
| Sequential Read | 530 MB/s (128KB, QD32) |
| Sequential Write | 500 MB/s (128KB, QD32) |
| Storage Capacity | 480 GB |
| Certainty / Notes | Specifications consolidated from Synology product documentation and multiple distributor/reseller listings. |
| Dimensions (inches) | Depth: 3.9" Width: 2.8" Height: 0.3" |
| Storage Temperature | Max: 85 °C Min: -40 °C |
| Operating Temperature | Max: 70 °C Min: 0 °C |
| Power Loss Protection | Yes |
| TBW (Terabytes Written) | 1145 TB |
| End-to-end Data Protection | Yes |
| Power Consumption (Typical) | Idle: 1.4 W Active Read: 2.6 W Active Write: 4.2 W |
| Designed For / Typical Workloads | Mixed and intensive 24/7 workloads Virtualized workloads Databases High-traffic environments AI / high-performance computing |
| Uncorrectable Bit Error Rate (UBER) | < 1 sector per 10^17 bits read |
| Random Read (4KB, QD32 steady state) | 95,000 IOPS |
| Random Write (4KB, QD32 steady state) | 55,000 IOPS |
Synology SAT5200 2.5" 480GB Enterprise-Class SATA SSD
