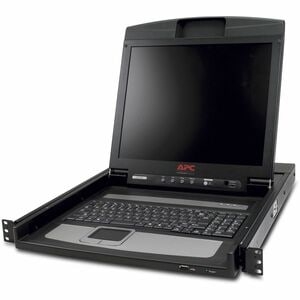

Schneider 17" Rack Lcd Console Ap5717

Rated /5 based on customer reviews

SKU: 96589

Brand: Schneider

Manufacturer Link

MPN: AP5717

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 3-5 weeks

Freight Estimate:

Buy Now And Earn Reward Points!

Nominal Input Voltage
Input Frequency
50/60 Hz
Supported Hardware
Panel Size
Pixel Pitch
Display Colors
Trackball Type
PS/2 Touchpad,USB mouse
LCD Power Consumption
Net Weight
15.90 KG
Maximum Height
44.00 mm
Maximum Width
482.00 mm
Maximum Depth
614.00 mm
Shipping Weight
19.46 KG
Shipping Height
152.00 mm
Shipping Width
673.00 mm
Shipping Depth
826.00 mm
Rack Height
Operating Environment
0 - 40 ?C
Regulatory Approvals
C-tick,CE,EN 55022 Class A,EN 55024,EN 60950,FCC Part 15 Class A,GOST,IEC 60950,Industry Canada,KCC,NOM,UL Listed,VDE
Standard Warranty
2 years repair or replace
Environmental Compliance
RoHS,REACH: Contains No SVHCs
AP5717 Features
Status Indicator LED's
Provides a quick visual indication of your unit's status.
Rack LCD Consoles Features & Benefits
Total Cost of Ownership
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Integrated Touchpad Pointing Device
Eliminates the need for a separate, external mouse.
Power tilt sensor
Save power by automatically powering down the device when it is closed.
PS/2 terminations
Connect to a server or KVM switch via standard PS/2 connectors.
Standard VGA connector
Connects to a server or KVM switch via a standard VGA connector.
Low Cooling requirements
Emits less heat than comparable CRT monitors .
Low Power Consumption
Uses less than half the power of comparable CRT monitors.

Marketing Text1U rack-mountable keyboard, mouse, and LCD console
PI DateJul 2011
Brand NameAPC
Manufacturer Web Sitehttp://www.apc.com
Product TypeRack LCD Consoles
LCD Panel Size17inch
Display Colors16million
Pixel Pitch0.26mm
Trackball TypePS/2 Touchpad
Depth (mm)614.0
Height (mm)44.0
Width (mm)482.0
Weight (Kg)15.9
Input Frequency50/60Hz
Form Factor1U
Compliance Standards* RoHS
Other Features* Status Indicator LED's
* Allows for rear mounting of 1U device
* Nominal Input Voltage :100V,240V
