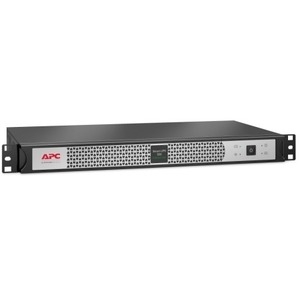

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartConnect Port, Short Depth SCL500RMI1UC

SKU
390908
Brand
MPN
SCL500RMI1UC
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,434.00
Buy Now And Earn 1434 Reward Points!

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartConnect Port, Short Depth

Smart-UPS

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.


Guides & Documents
  •
    Brochure
Controls/Indicators
Status Indicators Status Indicators:
    • Disconnected battery notification
    • Battery failure notification
Interfaces/Ports
Network (RJ-45) Yes
Serial Port Yes
USB (HID Compliant) Port Yes
Miscellaneous
Software Included APC Powerchute Business Edition
Environmentally Friendly Yes
Energy Star Yes
Management
Network Management USB
Alarm Overload
On Battery
Low Battery
Environmental Conditions
Maximum Operating Temperature 40°C
Maximum Operating Elevation 2 km
Maximum Storage Elevation 15 km
Storage Relative Humidity 10% - 90%
Storage Temperature -10°C - 40°C
Sound Emission (A-Weighted) 45 dB(A)
Technical Information
Application/Usage Mission Critical Equipment
POS Terminal
Network Device
Router
Server
Switch
Network Hub
Plug/Connector Type IEC 60320 C14
Receptacle Type IEC 60320 C13
EMI/RFI Noise Filter Yes
AVR Yes
Transfer Time 10 ms
Receptacle Detail 4 x IEC 60320 C13
Physical Characteristics
Weight (Approximate) 4.10 kg
Form Factor Rack/Tower
Rack Height 1U
Height 44.5 mm
Width 431.8 mm
Depth 232.2 mm
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Hot Swappable Yes
Battery Energy 108 kJ
Backup/Run Time (Half Load) 6.30 Minute
Backup/Run Time (Full Load) 2.70 Minute
Replaceable Battery Yes
Typical Battery Recharge Time 3 Hour
General Information
Product Type Line-interactive UPS
Manufacturer Part Number SCL500RMI1UC
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Name Smart-UPS 500VA Rack/Tower UPS
Product Line Smart-UPS
Brand Name APC by Schneider Electric
Power Description
Input Voltage 230 V AC
Output Voltage 230 V AC
Load Capacity 500 VA/400 W
Surge Energy Rating 510 J
Waveform Type Sine Wave
Input Voltage Range 208 V AC - 253 V AC
Output Frequency 60 Hz
Input Frequency 63 Hz
