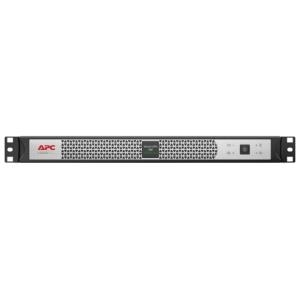

Apc - Schneider Smart-UPS C Lithium Ion Short Depth 500VA 230V with Network Card SCL500RMI1UNC
SKU
367326
Brand
MPN
SCL500RMI1UNC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,248.00
Buy Now And Earn 2248 Reward Points!
APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with
Network Card. Intelligent and efficient network power protection
from entry level to scaleable runtime. Ideal UPS for servers,
point-of-sale, routers, switches, hubs and other network
devices.
Guides & Documents
Controls/Indicators
| Status Indicators |
|
Interfaces/Ports
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Software Included | Powerchute Business Edition |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
Management
| Network Management | USB |
| Alarm | On Battery |
| Overload | |
| Low Battery |
Environmental Conditions
| Sound Emission | 45 dB(A) |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 1.97 km |
| Maximum Storage Elevation | 14.76 km |
| Storage Relative Humidity | 10% - 90% |
| Storage Temperature | -10°C - 40°C |
Technical Information
| Application/Usage | Router |
| Network Hub | |
| Business | |
| Rack Server | |
| Network Device | |
| Mission Critical Equipment | |
| Switch | |
| POS Terminal | |
| IT Equipment | |
| Server | |
| Receptacles | 4 x IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C14 |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Transfer Time | 10 ms |
Physical Characteristics
| Weight (Approximate) | 4.10 kg |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 232 mm |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Battery Capacity | 108 kJ |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
General Information
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SCL500RMI1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 500VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Load Capacity | 500 VA/400 W |
| Surge Energy Rating | 510 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 208 V AC - 253 V AC |
| Output Frequency | 50 Hz to 60 Hz |
| Input Frequency | 47 Hz to 63 Hz |
