- SATA-ready
- DC to DC converter design
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off

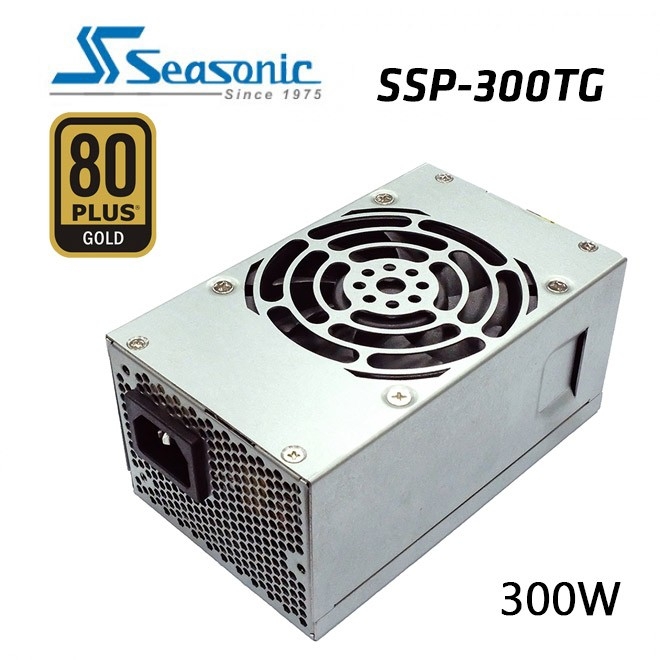

Seasonic Ssp-300tgs Active Pfc Tfx 300w Power Supply Psusea300tgsgld
SKU
249610
Brand
MPN
PSUSEA300TGSGLD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$128.00
Buy Now And Earn 128 Reward Points!
SSP-300TGS Active PFC
This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC converter design and important protection features for safe operations. It is perfect for desktop of mini ITX cases and with its 80 PLUS® Gold rating it can achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is highly reliable.
| DC Outputs | ||||||
|---|---|---|---|---|---|---|
| +3.3 V | +5 V | +12 V (combined) | -12 V | +5 V sb | Total continuous power | Input Type |
| 10 A | 14 A | 25 A | 0.3 A | 2 A | 300 W | Full Range |
| 70 W | 300 W | 3.6 W | 10 W | |||
| Specifications | |
|---|---|
| Input frequency | 50 / 60 Hz |
| Inrush current at cold sta | 100 A max. |
| Efficiency (at normal input voltage) | ≧ 87 % |
| Line regulation | ± 1 % (typical) |
| Load regulation | ± 5 % (typical) |
| Cross regulation | ± 5 % (typical) |
| Ripple / noise | 1 % |
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
| Power Factor Correction | 99 % (typical) |
OVERVIEW
This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC converter design and important protection features for safe operations. It is perfect for desktop of mini ITX cases and with its 80 PLUS® Gold rating it can achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is highly reliable.
FEATURES
- SATA-ready
- DC to DC converter design
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
