Serial Card - 8-Port PCIe - Low Profile PEX8S1050LP
SKU
295267
Brand
MPN
PEX8S1050LP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$363.00
Buy Now And Earn 363 Reward Points!
QUICK OVERVIEW
rt | 256byte Fifo - Controller Card; Pin 9 Power 5v/12v, 3A Max - 2xDB44 To DB9 Cables W/Hex Nuts - Windows Only; Systembase SB16C1058PCI PEX8S1050LP

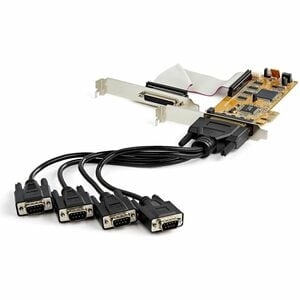

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. Versatile Use The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor. Windows Only This PCI Express card is only compatible with Windows and Windows server. More from the Manufacturer
| Host Interface | PCI Express x1 |
| Product Type | Multiport Serial Adapter |
| Form Factor | Plug-in Card |
| Brand Name | StarTech.com |
| TAA Compliant | Yes |
| Manufacturer Part Number | PEX8S1050LP |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 8-Port PCI Express Serial Card with 16C1050 UART |
| Ports Expandability | 8 x DB-9 - Serial, Via Cable |
| Number of Serial Ports | 8 |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/pex8s1050lp_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/pex8s1050lp_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/pex8s1050lp_weee.pdf |
| Weight (Approximate) | 116 g |
| Height | 61 mm |
| Width | 22.9 mm |
| Product Color | Yellow |
| Color Family | Yellow |
| Platform Supported | PC, Linux |
| Maximum Data Transfer Rate | 921.40 kbit/s |
| Shipping Dimensions | Height 7, Width 19, Length 29.5, Shipping Weight 0.74 KG |
Serial Card - 8-Port PCIe - Low Profile
