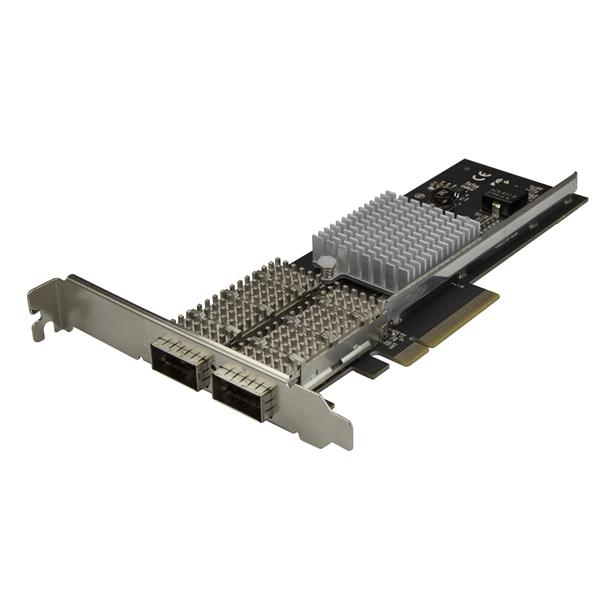

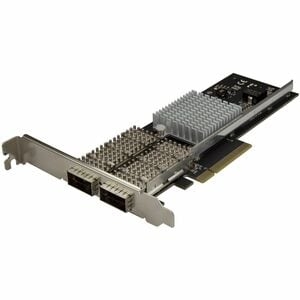

Startech Dual Port Qsfp+ Server Nic Card - Intel Xl710 Chip - 40gb Nic - Pcie Network Card - Network
QUICK OVERVIEW
Overview
Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase your network speed
This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.
Add redundant connections in zero-downtime environments
With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.
Add scalable network connections
With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance your network capabilities
The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
The PEX40GQSFDPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Performance | |
Compatible Networks | 40 Gbps |
Full Duplex Support | Yes |
Jumbo Frame Support | 9K max. |
PXE | No |
Supported Protocols | IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control Support) IEEE 802.1Q (VLAN tagging) |
Physical Characteristics | |
Color | Black |
Product Height | 21 mm [0.8 in] |
Product Length | 181 mm [7.1 in] |
Product Weight | 127 g [4.5 oz] |
Product Width | 121 mm [4.8 in] |
Software | |
OS Compatibility | Windows? 7, 8, 8.1, 10 (64-bit Only) Windows Server? 2008 R2, 2012, 2012 R2, 2016 (64-bit Only) Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only |
What's in the Box | |
Included in Package | low-profile bracket |
network card | |
quick-start guide | |
Packaging Information | |
Shipping (Package) Weight | 212 g [7.5 oz] |
Indicators | |
LED Indicators | Link/Activity (green) |
Hardware | |
Ports | 2 |
Industry Standards | IEEE 802.3ba 40GBASE-SR4 IEEE 802.3ba 40GBASE-LR4 PCI Express Rev 3.0, using PCIe x8 (or higher) slot |
Chipset ID | Intel - XL710-BM2 |
Card Type | Standard Profile (LP bracket incl.) |
Bus Type | PCI Express |
Environmental | |
Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
Operating Temperature | 0?C to 57?C (32?F to 134.6?F) |
Humidity | 5~95% RH |
Connector(s) | |
Connector Type(s) | QSFP+ Female |
PCI Express x8 Male |
