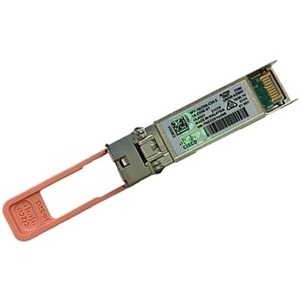

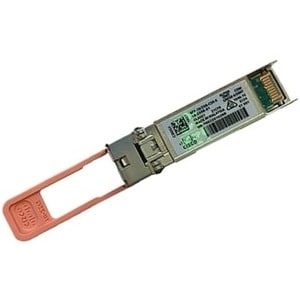

Dual Rate 10/25Gbase-Csr Sfp Module SFP-10/25G-CSR-S=
SKU
306847
Brand
MPN
SFP-10/25G-CSR-S=
Warranty
Standard Manufacturer's Warranty
$1,493.00
Buy Now And Earn 1493 Reward Points!
The Cisco 10/25GBASE-CSR Module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G
This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G. For 10G operation FEC is not required.
This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G. For 10G operation FEC is not required.
| Product Type | SFP28 |
| Network Technology | 25GBase-CSR |
| Brand Name | Cisco |
| Ethernet Technology | 25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Manufacturer Part Number | SFP-10/25G-CSR-S= |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | 10/25GBASE-CSR SFP28 Module for MMF |
| Interfaces/Ports Details | 1 x LC/PC Duplex 25GBase-CSR Network |
| Connector Type | LC/PC |
| Total Number of Ports | 1 |
| Fiber Mode Supported | Multi-mode |
| Environmentally Friendly | Yes |
| Application/Usage | Data Networking, Optical Network |
| Shipping Dimensions | Height 1, Width 8, Length 13, Shipping Weight 0.03 KG |
Dual Rate 10/25GBASE-CSR SFP Module
