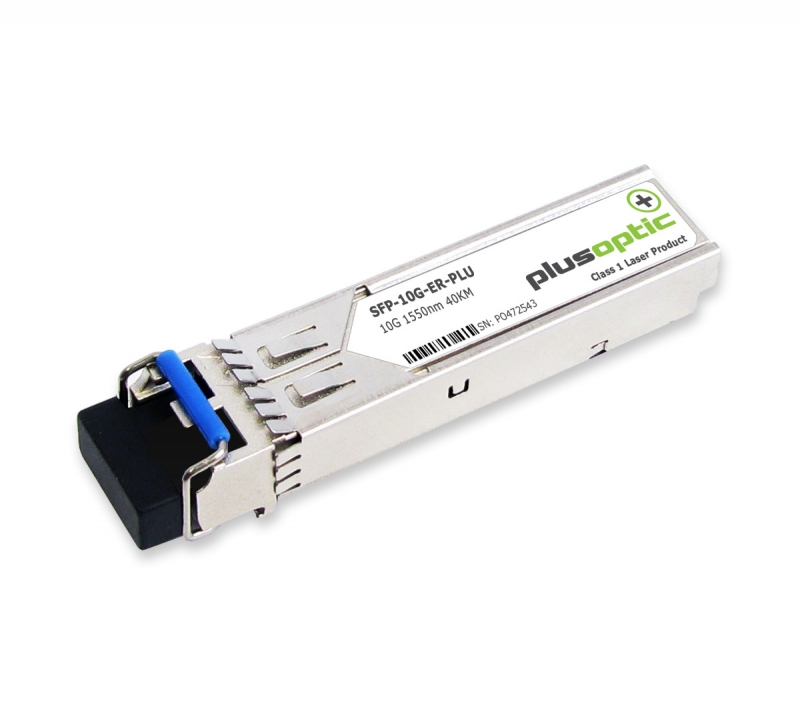

Designed for use in 10-Gigabit Ethernet links up to 40km over single mode fibre. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472. The module data link up to 40km in 9/125um single mode fibre.

FEATURES
Up to 11.1Gbps Data Links
Up to 40km transmission on SMF
EML transmitter and PIN receiver
Metal enclosure, for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP+ footprint
Specifications compliant with SFF 8472
Compliant with SFP+ MSA with LC connector
Single 3.3V power supply
Case operating temperature range: 0°C to 70°C
Power dissipation < 1.5 W
APPLICATIONS
10GBASE-ER/EW & 10G Ethernet
STANDARDS
Compliant to SFF-8431
Compliant to SFF 8472
RoHS Compliant
WARRANTY

3-years limited warranty

TAA-approved SFPs available upon request, Contact us for more details.
