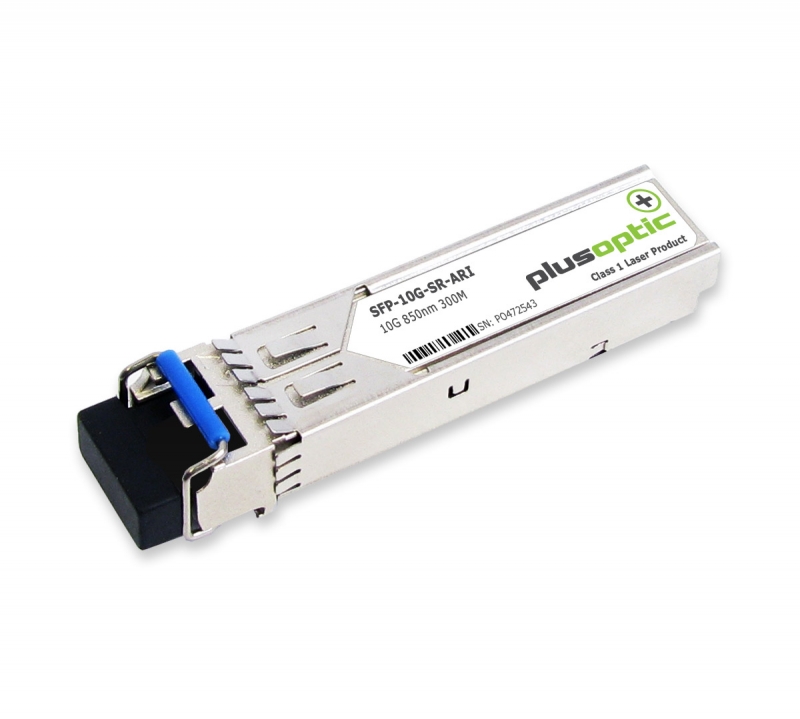

The 10Gb/s 850nm Multi-mode SFP+ Transceiver offers a high-performance solution for 10GBASE-SR/SW Ethernet applications. With data rates of up to 11.1Gbps, this transceiver supports multimode fibre (MMF) transmission over distances up to 300m. Its low power consumption of less than 1W makes it an energy-efficient choice for network environments.

Featuring a VSCEL laser and PIN receiver, this transceiver ensures robust performance and minimises electromagnetic interference (EMI) thanks to its metal enclosure. Hot-pluggable and compliant with the SFP+ MSA standard, it integrates seamlessly into existing network setups.

This transceiver supports integrated Digital Diagnostic Monitoring via a 2-wire interface, offering real-time monitoring of parameters such as temperature and optical power. It is also compliant with SFP+ MSA and RoHS standards, making it suitable for most network environments.

FEATURES
Up to 11.1Gbps Data Links
Up to 300m transmission on MMF
Power dissipation < 1W
VSCEL laser and PIN receiver
Metal enclosure, for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP+ footprint
Specifications compliant with SFF 8472
Compliant with SFP+ MSA with LC connector
Single 3.3V power supply
Case operating temperature range: 0°C to 70°C
APPLICATIONS
10GBASE-SR/SW & 10G Ethernet
STANDARDS
Compliant to SFP+ SFF-8431
Compliant to 802.3ae 10GBASE-SR
RoHS Compliant
WARRANTY

3-years limited warranty

TAA-approved SFPs available upon request, Contact us for more details.
