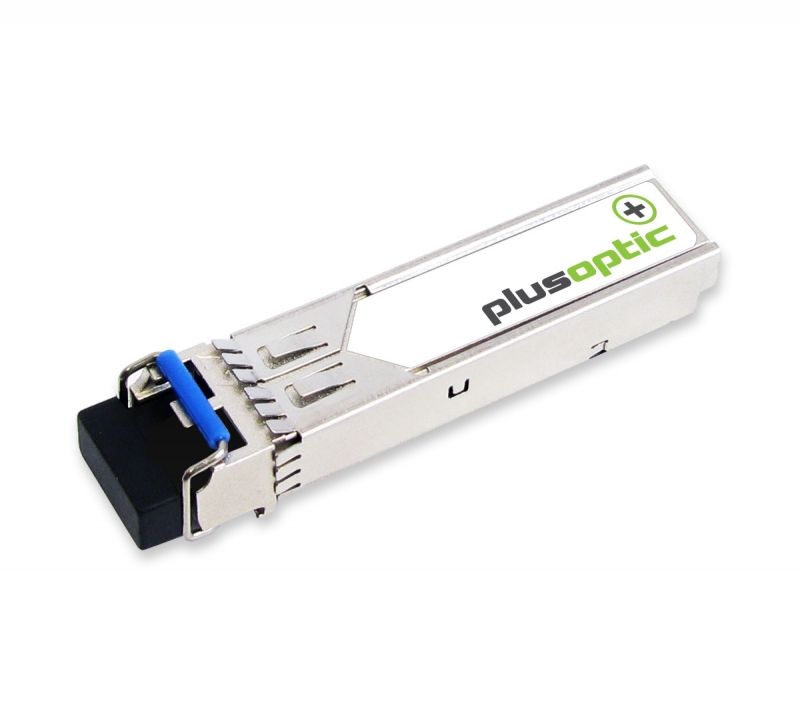

PlusOptic 1.25G, SFP, 1310nm, 20KM Transceiver, LC Connector for SMF with DDMI | PlusOptic SFP-1G-LX20-PLUi
PlusOptic 1.25G, SFP, 1310nm, 20KM Transceiver, LC Connector for SMF with DDMI | PlusOptic SFP-1G-LX20-PLUi
PLUSOPTIC’s SFP-1G-LX-ARI Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
FEATURES
- Up to 2.25Gb/s data links
- Up to 20km on 9/125µm SMF
- 1310nm FP laser
- Hot-pluggable SFP footprint
- Duplex LC/UPC type pluggable optical interface
- Single 3.3V power supply
- RoHS compliant and lead-free
- Support Digital Diagnostic Monitoring interface (DDM)
- Case operating temperature
- Industrial: -40°C to +85°C
| Manufacturer Part# | SFP-1G-LX20-PLUi |
|---|---|
| Compatible Brand | PlusOptic |
| Device Type | SFP |
| Transmission Mode | SMF |
| Max Distance | 20km |
| Max Data Rate | 1.25Gbps |
| Terminations | LC |
| Warranty | 3 Years |
