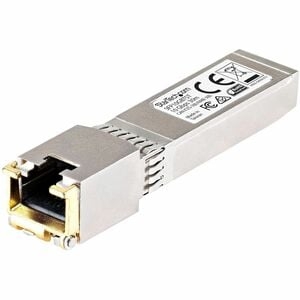

Startech Cisco Compatible Sfp+ Module - 10Gbase-T Fiber Optical Transceiver - Sfp10Gbtcst Sfp10Gbtcst
The SFP10GBTCST is a Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
- Maximum Data Transfer Rate: 10 Gbps
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 30 m (98.4 ft)
- MTBF: 4,598,430 hours
- Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | Lifetime | |
| HARDWARE | ||
| Compatible Brand | Cisco | |
| Industry Standards | IEEE 802.3an 10GBASE-T | |
| PERFORMANCE | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10 Gbps | |
| DDM | No | |
| Max Transfer Distance | 30 m (98.4 ft) | |
| Maximum Data Transfer Rate | 10Gbps | |
| MTBF | 4,598,430 hours | |
| Type | Copper | |
| CONNECTOR(S) | ||
| Local Unit Connectors | 1 - RJ-45 Female | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | For use in Gigabit fiber networking equipment and media converters | |
| System and Cable Requirements | MSA or Cisco compliant SFP port | |
| POWER | ||
| Power Consumption (In Watts) | 2.3 W (max.) | |
| ENVIRONMENTAL | ||
| Humidity | 95% | |
| Operating Temperature | 0°C to 70°C | |
| Storage Temperature | -40°C to 90°C | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Silver | |
| Enclosure Type | Zinc Alloy | |
| Product Height | 0.5 in [13.8 mm] | |
| Product Length | 2.7 in [69.8 mm] | |
| Product Weight | 2 oz [58 g] | |
| Product Width | 0.5 in [13.4 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 0.1 lb [0 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - SFP transceiver | |
| Full Duplex Support | Yes | |
| Max Distance | 30 m / 100 ft | |
| Ports | 1 | |
