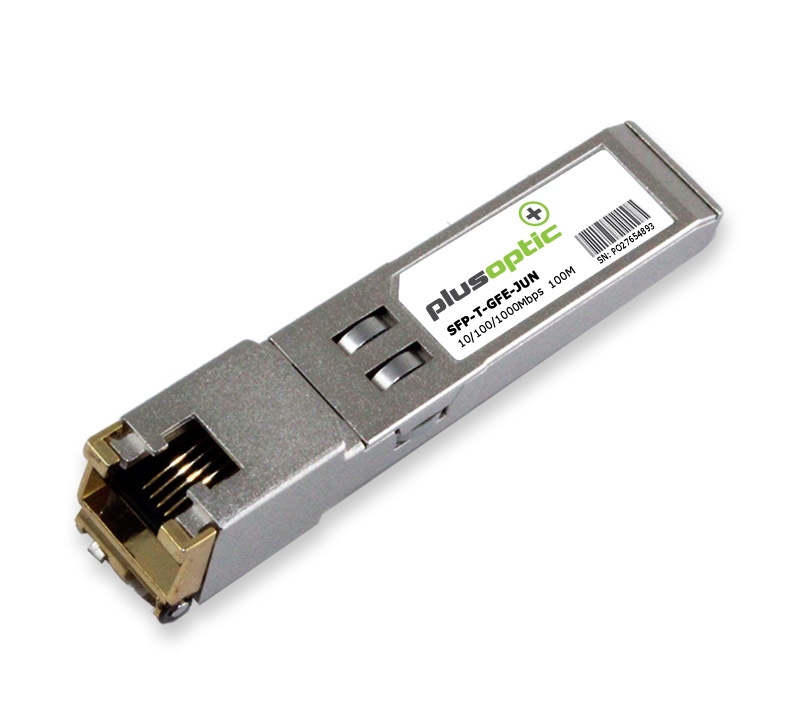

This is a Copper Small Form pluggable (SFP) transceiver, which is based on SFP multi-sourcing agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. The SFP-T-GFE-PLU /SFP-T-GFE-PLUI is compatible with 1000BASE-X auto-negotiation.

FEATURES
Up to 1.25Gbps bi-directional data links
RJ45 Max100m
Fully metallic enclosure for low EMI
Compact RJ-45 Connector assembly
Hot-pluggable SFP footprint
Low power dissipation
Operating temperature: Refer to Ordering Info
RoHS compliant and Lead Free
Access to physical layer IC via 2-wire serial bus over CAT5 cable
10/100/1000BASE-T operation in host systems with SGMII interface
APPLICATIONS
1.25 Gigabit Ethernet
WARRANTY

3-years limited warranty

TAA-approved SFPs available upon request, Contact us for more details.
