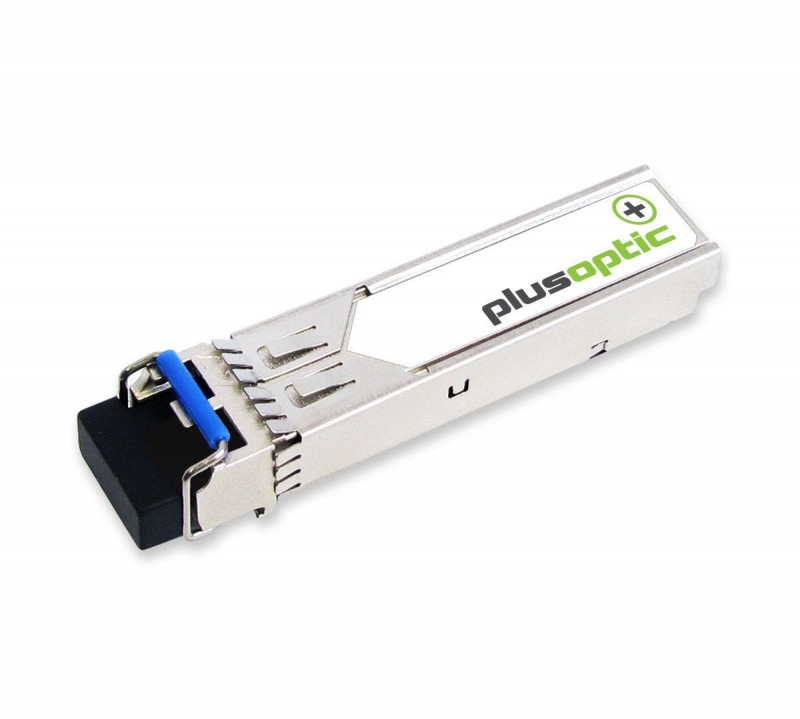

Upgrade your network performance with the SFP28-SR-HP, a high-performance, cost-effective optical transceiver fully compatible with HP/Aruba JL484A hardware. This module is specifically engineered for high-speed, short-range 25-Gigabit Ethernet communication, making it an ideal choice for connecting servers, switches, and storage systems within data centres and enterprise networks. It reliably transmits data up to 100 metres over OM4 multi-mode fibre, providing the bandwidth needed for demanding applications.

Featuring a hot-pluggable SFP28 footprint, this transceiver allows for seamless installation and replacement without the need to power down your networking equipment, ensuring maximum uptime. The industry-standard duplex LC connector provides a secure and reliable connection. With its low power consumption, this module contributes to a more energy-efficient and cost-effective network infrastructure, reducing the overall thermal load in high-density environments.

This transceiver is equipped with Digital Diagnostics Monitoring (DDM), also known as Digital Optical Monitoring (DOM), enabling real-time tracking of critical operating parameters. Network administrators can easily monitor aspects like optical output/input power, temperature, and voltage to ensure link integrity and facilitate proactive maintenance. Built to stringent MSA standards, this module guarantees broad compatibility and reliable performance for your critical network links.

FEATURES

• Fully compatible with HP / Aruba (JL484A)
• Hot-pluggable SFP28 MSA compliant form factor
• Supports data rates up to 25.78Gbps
• 850nm VCSEL laser transmitter
• Transmission distance of up to 70m on OM3 MMF and 100m on OM4 MMF
• Standard Duplex LC optical connector
• Low power consumption (<1W)
• Built-in Digital Diagnostics Monitoring (DDM/DOM)

SPECIFICATIONS

• Form Factor: SFP28
• Compatibility: HP / Aruba JL484A
• Max Data Rate: 25.78Gbps
• Wavelength: 850nm
• Max Cable Distance: 100m over OM4 Multi-Mode Fibre (MMF)
• Connector: Duplex LC
• Transmitter Type: VCSEL
• Receiver Type: PIN
• Power Consumption: <1.0W
• Operating Temperature: 0 C to 70 C (Commercial)
• Protocols: 25GBASE-SR Ethernet, MSA Compliant

WARRANTY

1-Year Limited Warranty
