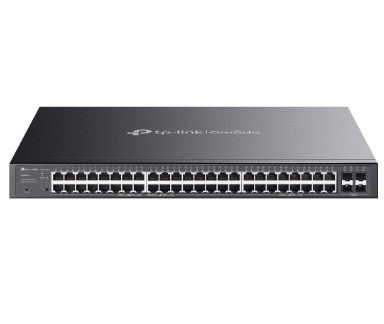

TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch With 32-Port PoE+(SG2452LP), 5-Year Wty SG2452LP
SKU
425977
Brand
MPN
SG2452LP
Warranty
Standard Manufacturer's Warranty
$1,009.00
Buy Now And Earn 1009 Reward Points!
TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
• 32× Gigabit 802.3af/at PoE+ ports
• 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
• 230 W total PoE budget with up to 30 W PoE output per port*
• Centralised cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for quiet operation
• Durable metal casing and rackmountable design
• 32× Gigabit 802.3af/at PoE+ ports
• 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
• 230 W total PoE budget with up to 30 W PoE output per port*
• Centralised cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for quiet operation
• Durable metal casing and rackmountable design
| QoS | 802.1p CoS / DSCP, 8 priority queues, SP and WRR scheduling |
|---|---|
| SKU | SG2452LP |
| UPC | 810142820387 |
| Brand | TP-Link |
| Color | Black |
| Model | SG2452LP |
| Weight | 6.62 kg (14.56 lb) |
| Cooling | Fanless (passive cooling) |
| Routing | Static routing (IPv4/IPv6 support) |
| Material | Metal |
| Warranty | 5-Year Warranty |
| PoE Ports | 32 x PoE+ (802.3at/af) |
| SFP Slots | 4 x Gigabit SFP |
| Management | Omada Cloud/Hardware/Software Controllers (centralized), Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON |
| RJ45 Ports | 48 x Gigabit RJ45 (32 x PoE+ RJ45, 16 x non-PoE RJ45) |
| Description | The TP-Link Omada SG2452LP is a 52-port Gigabit smart switch (48 x RJ45 + 4 x SFP) designed for business networks, offering 32 IEEE 802.3at/af PoE+ ports and 16 non-PoE Gigabit RJ45 ports. It provides a 230 W total PoE budget (up to 30 W per port), 104 Gbps switching capacity, and a 77.37 Mpps forwarding rate. Management options include centralized Omada Cloud/Hardware/Software Controllers, zero-touch provisioning, and standalone management via web GUI, CLI (Telnet/SSH), SNMP and RMON. The metal, rack-mountable 1U chassis features a fanless design for quiet operation and includes PoE/security/QoS features such as VLAN, ACL, IGMP snooping, static routing, 802.1X, IP-MAC-Port binding, DHCP snooping and storm control. Package includes the SG2452LP, power cord, quick installation guide, rackmount kit and rubber feet. |
| Form Factor | Rack-mountable, 1U metal chassis |
| Power Input | 100–240 VAC, 50/60 Hz |
| Total Ports | 52 (48 x RJ45 + 4 x SFP) |
| Jumbo Frames | 9 KB (9000 bytes) |
| PoE Standard | IEEE 802.3af/at |
| VLAN Support | 802.1Q, up to 4K VLAN groups, MAC/Protocol/Voice VLAN support |
| Packet Buffer | 12 Mb |
| Product Title | TP-Link Omada SG2452LP 52-Port Gigabit Smart Switch (32 x PoE+ / 16 x non-PoE RJ45 + 4 x SFP) |
| Certifications | CE, FCC, RoHS |
| Forwarding Rate | 77.37 Mpps |
| Layer Supported | Layer 2 (Smart Managed) |
| Layer 2 Features | Link Aggregation, STP, RSTP, MSTP, LLDP/LLDP-MED, DLDP, Mirroring, Port Isolation, 802.3x Flow Control |
| Max PoE per Port | Up to 30 W (per port, lab-based) |
| Operating System | Linux (embedded) |
| PoE Power Budget | 230 W total |
| Recommended Uses | Business networks Surveillance (IP cameras) Wireless access point backhaul VoIP / IP phones |
| Storage Humidity | 5–90% RH non-condensing |
| MAC Address Table | 16K |
| Power Supply Type | Internal |
| Security Features | 802.1X, IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, ND Detection, IP/IPv6 Source Guard, DoS Defend, Port Security, ACLs, Storm Control |
| Operating Humidity | 10–90% RH non-condensing |
| Switching Capacity | 104 Gbps |
| Physical Dimensions | 17.3 x 13 x 1.7 inches (440 x 330 x 44 mm) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Switching Bandwidth | 104 Gb/s |
| Included Accessories | Power Cord Quick Installation Guide Rackmount Kit Rubber Feet SG2452LP unit |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Packet Forwarding Rate | 77.37 Mpps |
| Power Consumption (Max) | 304.5 W |
| Zero Touch Provisioning | Supported (requires Omada controller) |
TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+(SG2452LP), 5-Year WTY
