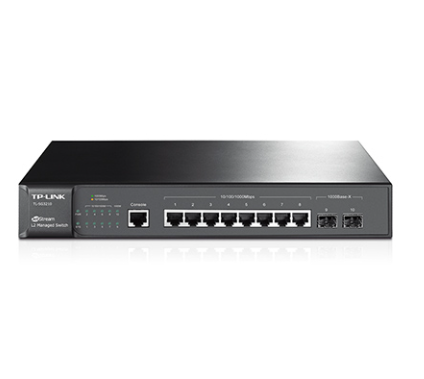

TP-Link JetStream™ 8-Port Gigabit L2+ Managed 1U Switch, 8× Gigabit RJ45 Ports, 2× Gigabit Sfp Slots, RJ45/Micro-USB Console Port, 5-Year Wty SG3210
SKU
419322
Brand
MPN
SG3210
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$220.00
Buy Now And Earn 220 Reward Points!
TP-Link JetStreamâ„¢ 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
| Fan | Fanless |
|---|---|
| SKU | SG3210 |
| UPC | 840030702464 |
| VLAN | 802.1Q tagged VLAN, up to 4K VLANs/VLAN IDs; Port/MAC/Protocol-based VLAN, QinQ, Voice VLAN, GVRP |
| Brand | TP-Link |
| Layer | L2 / L2+ (Static Routing supported) |
| Model | TL-SG3210 V3 |
| Ports | 8 x 10/100/1000 Mbps RJ45 (Auto-Negotiation/Auto MDI/MDIX) |
| Series | JetStream |
| Weight | Approximately 1.2 kg (2.6 lb) (varies by source) |
| Mounting | Rack-mountable (rackmount kit included) / Desktop (rubber feet included) |
| Security | IP-MAC-Port(-VID) binding 802.1X (port/MAC) with RADIUS/TACACS+ support DHCP snooping / DHCP relay Dynamic ARP Inspection (DAI) IPv4/IPv6 Source Guard Port security (up to 64 MAC addresses per port) DoS defense Broadcast/Multicast/Unknown-unicast Storm Control SSH v1/v2, HTTPS/SSL/TLS management |
| Warranty | 5 Year Manufacturer Warranty (as listed by some vendors) |
| SFP Slots | 2 x 1000 Mbps SFP slots |
| Management | Omada SDN integration (Omada Cloud/Hardware/Software Controllers; controller required for cloud features) Omada app Web-based GUI CLI (Console, Telnet, SSH) SNMP v1/v2c/v3 RMON (1,2,3,9) Dual Image/Dual Configuration Zero-Touch Provisioning (ZTP) Batch configuration / firmware upgrade Cable diagnostics, CPU monitoring, system log, SNTP |
| Port Speed | 10/100/1000 Mbps |
| Description | TP-Link TL-SG3210 V3 (JetStream) is an 8-port Gigabit L2/L2+ managed switch with 2 Gigabit SFP slots designed for small and medium business networks. It offers full gigabit RJ45 connectivity plus SFP uplinks, enterprise-level QoS (L2–L4), IGMP snooping, static routing and rich VLAN/ACL/security features. The switch supports centralized cloud management and Omada SDN integration (Omada Hardware/Software/Cloud Controllers and Omada app — controller required for cloud features), Zero-Touch Provisioning, and standalone management via Web GUI, CLI (console/telnet/SSH), SNMP and RMON. Fanless, metal-cased and rackmount/desktop capable, the TL-SG3210 V3 provides secure access control (IP-MAC-Port(-VID) binding, 802.1X, DHCP snooping, DAI, port security, storm control, DoS protection), link aggregation (LACP), spanning tree, port mirroring and many ISP/management features (OAM, DDM, DLDP, PPPoE ID insertion). Package includes switch, power cord, console cable, quick installation guide, rackmount kit and rubber feet. |
| Environment | Storage Humidity: 5%–90% RH non-condensing Operating Humidity: 10%–90% RH non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) (reported ranges vary by source) |
| Form Factor | Rackmount / Desktop |
| Jumbo Frame | Up to 10240 bytes |
| SNMP & MIBs | SNMP v1/v2c/v3; MIB-II (RFC1213), Bridge MIB, P/Q-Bridge MIB, RMON, Radius Accounting/Authentication MIBs, TP-Link private MIBs |
| IPv6 Support | Dual IPv4/IPv6 stack; IPv6 ACLs; IPv6 Neighbor Discovery; DHCPv6 client; IPv6 SNMP/SSH/SSL; ICMPv6; Ping6/Tracert6/Telnet(v6)/TFTP(v6) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Case Material | Metal |
| Console Ports | 1 x RJ45 console port, 1 x Micro-USB console port |
| Product Title | TP-Link TL-SG3210 V3 JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots |
| Spanning Tree | STP/RSTP/MSTP |
| Certifications | CE FCC RoHS |
| IGMP/Multicast | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration (MVR), IGMP authentication |
| Number of Ports | 8 |
| Heat Dissipation | Reported example: 23.33 BTU/h (220 V/50 Hz) (varies by source) |
| Link Aggregation | 802.3ad LACP (Up to 8 aggregation groups, up to 8 ports per group) |
| Package Contents | TL-SG3210 (SG3210) switch Power cord Console cable Quick installation guide Rackmount kit Rubber feet Resource CD (listed by some vendors) |
| MAC Address Table | 8K entries |
| Power Consumption | Typical/Maximum reported values vary (sources list ~6.84 W and ~10.7 W); product documentation should be consulted for exact measurement |
| Quality of Service | L2–L4 QoS, 4 or 8 priority queues (sources vary), 802.1p CoS/DSCP, SP/WRR/SP+WRR scheduling, port/flow rate limiting, voice VLAN |
| Switching Capacity | 20 Gbps |
| Access Control List | L2–L4 ACLs (MAC/IP/TCP/UDP/DSCP/802.1p/VLAN ID), time-based ACLs, combined ACLs, packet content ACL |
| Packet Buffer Memory | ≈4 Mb |
| Dimensions (W x D x H) | Approximately 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Packet Forwarding Rate | ≈14.89 Mpps |
| ISP / Advanced Features | Static routing (IPv4/IPv6 static routes) ERPS (Ethernet Ring Protection Switching) L2PT, DLDP, PPPoE ID insertion 802.3ah Ethernet Link OAM, DDM |
TP-Link JetStream™ 8-Port Gigabit L2+ Managed 1U Switch, 8× Gigabit RJ45 Ports, 2× Gigabit SFP Slots, RJ45/Micro-USB Console Port, 5-Year WTY
