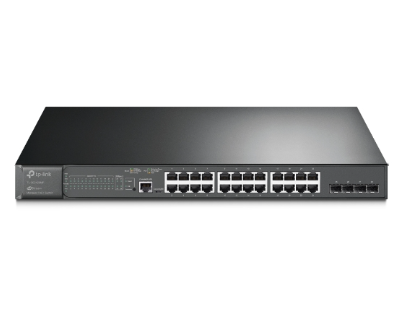

TP-Link JetStream (SG3428MP) 28-Port Gigabit L2+ Managed Switch With 24-Port PoE+, RJ45/Micro-USB Console Port, 5-Year Wty SG3428MP
SKU
419323
Brand
MPN
SG3428MP
Warranty
Standard Manufacturer's Warranty
$856.00
Buy Now And Earn 856 Reward Points!
"TP-Link JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
PORT: 24× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port
SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
PORT: 24× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port
SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
| SKU | SG3428MP |
|---|---|
| UPC | 840460605120 845973010157 |
| ASIN | B0973TVGMR |
| Brand | TP-Link |
| Color | Not specified |
| Model | TL-SG3428MP |
| Notes | PoE budget calculations are based on laboratory testing; actual PoE power available may vary due to client limitations and environmental factors. |
| Weight | 5.04 kg (11.09 lb) |
| Managed | L2+ Managed |
| Voltage | 100 V AC |
| Warranty | Limited Lifetime Warranty |
| PoE Ports | 24 × 10/100/1000 Mbps RJ45 PoE+ (802.3af/at) |
| SFP Slots | 4 × Gigabit SFP |
| Dimensions | 7.9" L x 1.7" W x 17.3" H |
| Interfaces | RJ45 (PoE+ ports) Gigabit SFP slots Console (serial) port |
| Management | Omada SDN (cloud management, Omada app, zero-touch provisioning) Web GUI CLI (console) Telnet SSH SNMP RMON Dual Image |
| PoE Budget | 384 W (total) |
| Port Speed | 1 Gbps |
| Description | The TP-Link JetStream TL-SG3428MP is a 28-port Gigabit L2+ managed switch with 24x 802.3at/af PoE+ RJ45 ports and 4x Gigabit SFP slots. It provides a 384 W total PoE budget (up to 30 W per port), advanced L2/L2+ features (802.1Q VLAN, static routing, ACL, QoS, IGMP snooping, ERPS), and robust security (IP-MAC-Port binding, port security, DoS defense, DHCP snooping, 802.1X/RADIUS). Manage locally (web GUI, CLI, Telnet, SSH, SNMP, RMON) or centrally via Omada SDN (cloud management, Omada app, zero-touch provisioning). Rack-mountable metal design with included power cord, quick installation guide, rackmount kit and rubber feet. |
| IPv6 Support | Dual IPv4/IPv6 stack MLD Snooping IPv6 ACL Static IPv6 Routing DHCPv6 Snooping IPv6 Neighbor Discovery (ND) PMTU discovery ICMPv6 IPv6 support for SNMP/SSH/SSL/HTTP/TFTP |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Line | JetStream |
| Case Material | Metal |
| Maximum Power | 384 W |
| Product Title | TP-Link JetStream TL-SG3428MP — 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ (384W) and 4 SFP |
| Current Rating | 1 A |
| Rack-mountable | true |
| Version/Status | V2 (End of Life) — newer model SKU SG3428MP referenced in some sources |
| L2/L2+ Features | 802.1Q VLAN Static Routing ACL (L2–L4) QoS (L2/L3/L4) IGMP Snooping (with throttling/filtering) ERPS (Ethernet Ring Protection Switching) STP / RSTP / MSTP Link Aggregation (LACP) Port Mirroring 802.3x Flow Control sFlow QinQ L2PT PPPoE ID insertion 802.3ah OAM Device Link Detection Protocol (DLDP) |
| Number of Ports | 28 |
| PoE Max Per Port | Up to 30 W per port |
| Item Model Number | TL-SG3428MP |
| Security Features | IP-MAC-Port(-VID) Binding Port Security Access Control Lists (ACL) DoS defense Storm Control DHCP Snooping 802.1X (RADIUS/TACACS+ support) |
| Included Components | TL-SG3428MP switch Power cord Quick installation guide Rack-mount kit Rubber feet |
TP-Link JetStream (SG3428MP) 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+, RJ45/Micro-USB Console Port, 5-Year WTY
