Tp-link Single Port Poe Supplier Adapter (injector) Ieee 802.3af Compliant Up To 100m Tl-poe150s

SKU
245037
Brand
MPN
TL-POE150S
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$37.00
Buy Now And Earn 37 Reward Points!

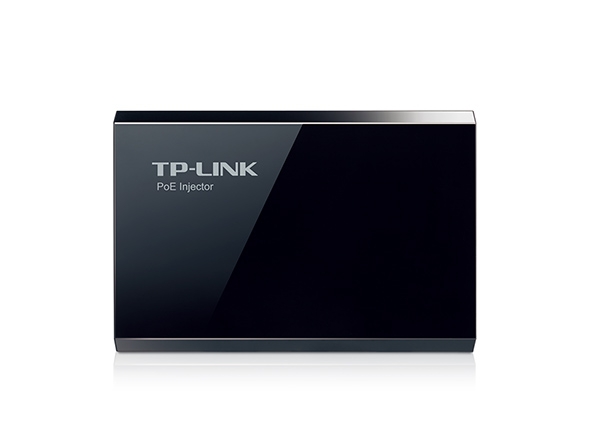

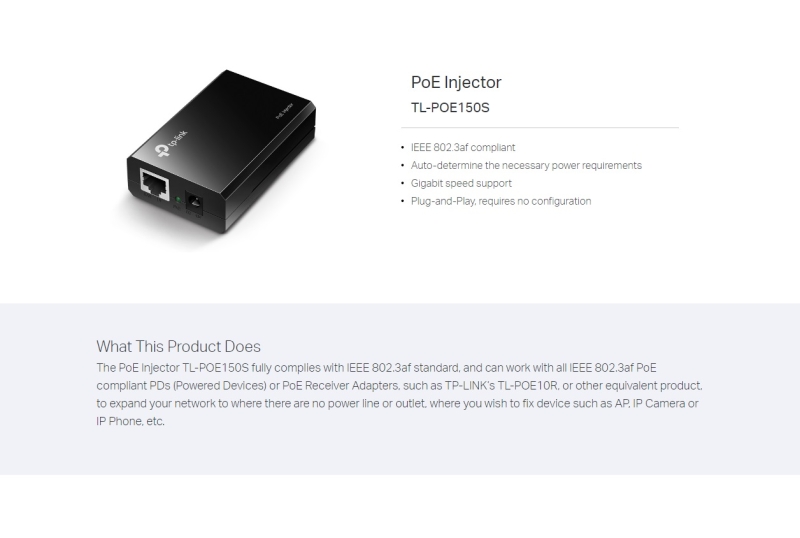

PoE InjectorTL-POE150S

  • IEEE 802.3af compliant
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

What This Product Does

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
  • External power adapter supply
HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 15.4W (Max. 48VDC)
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements

OTHERS
Certification FCC, CE, RoHS
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
