4C | 305m Cat6 Blue UTP SOLID Cable Roll, 250MHz, 24AWGx4P. External O.D. 4.9mm PVC Cable Roll in a REELEX II Pull Box
Experience reliable, high-speed connectivity with this high-performance Category 6 (Cat6) U/UTP networking cable. Engineered for structured cabling systems, it features 4-pair solid bare copper conductors, ensuring optimal signal integrity and consistent performance for your data-intensive applications. It's the ideal choice for building a robust and future-proof network infrastructure.
This cable is fully compliant with key industry standards, including ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50288. It is also UL Certified and ETL verified, providing you with the confidence that comes from using a product that meets strict quality, safety, and performance benchmarks.

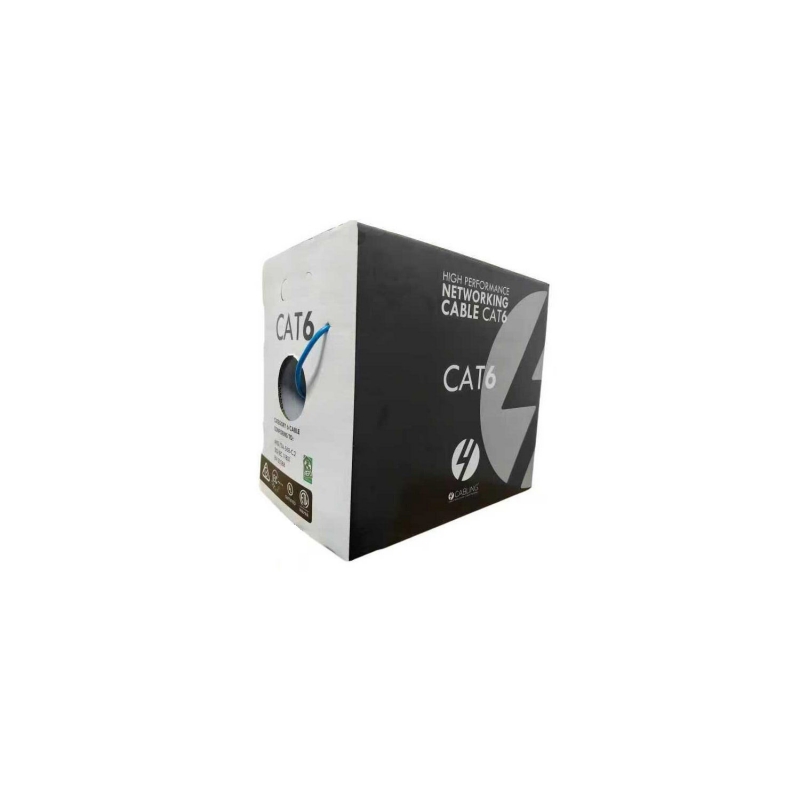

Designed for a smooth installation, the 305m (1000ft) cable comes packaged in a tangle-free REELEX II pull box. The durable, CMX-rated PVC sheath offers protection and flexibility, while an integrated rip-cord allows for easy stripping of the jacket without damaging the twisted pairs.
FEATURES
- High-performance Category 6 (Cat6) U/UTP cable
- 305m length in a tangle-free REELEX II pull box
- Solid bare copper conductors for superior signal integrity
- Conforms to ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50288
- UL Certified and ETL Intertek verified
- Durable CMX-rated PVC sheath
- Rip-cord included for easy jacket stripping
- Rated for 1.0-250.0MHz performance
SPECIFICATIONS
- Cable Type: U/UTP (Unshielded Twisted Pair)
- Category: Cat6
- Conductor Material: Solid Bare Copper
- Conductor Diameter: 0.500mm (Nominal)
- Insulation Material: HDPE
- Sheath Material: PVC (CMX Rated, RoHS Compliant)
- External O.D.: 5.3 ±0.4mm
- Length: 305m
- Standards: ANSI/TIA-568-C.2, ISO/IEC 11801
- Frequency: 1.0-250.0MHz
- Impedance: 100 ±15Ω
- Delay Skew: ‰¤45ns/100m
- DC Resistance (max): 9.5Ω/100m
- DC Conductor Resistance Unbalance (max): 5.0%
WARRANTY
3-Year Warranty
