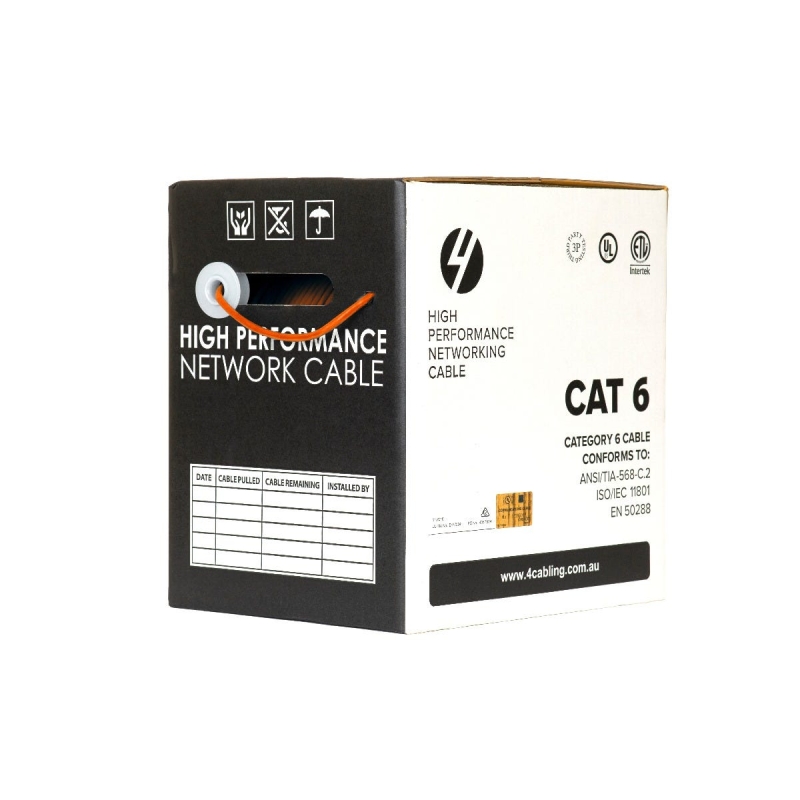

CAT6 Ethernet Cable Reel Box Utp LAN Cable W/ Solid Conductor | 305m Orange SLD.C6UTP.ORANGE.R
SKU
366503
Brand
MPN
SLD.C6UTP.ORANGE.R
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$253.00
Buy Now And Earn 253 Reward Points!
CAT6 Ethernet Cable Reel Box UTP LAN Cable with Solid Conductor | 305m Orange
CAT6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today 's applications.
Category 6 cable, commonly referred to as CAT6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5E and Category 3 cable standards.
Compared with CAT5 and CAT5E, CAT6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
FEATURES
Unterminated CAT6 in Reel Box
PVC Outer Jacket
Metre Marked
305m Reel Box
23 AWG
SPECIFICATIONS
Cable Type: CAT6
Connectors: Unterminated
Length: 305m (1000ft)
Colour: Orange
Jacket Material: PVC
Diameter: 6.2mm
Max. Rated Operating Temperature: 75°C
APPLICATIONS
Gigabit Ethernet, Multimedia, video, voice & data
Horizontal wiring in Local Area Networks (LAN)
550MHz Broadband Video
CERTIFICATIONS
UL listed
EIA/TIA and RCM approved
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition
IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1
CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2
RoHS compliance the European Union issued Directive 2002/95/EC
WARRANTY
3-years limited warranty
CAT6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today 's applications.
Category 6 cable, commonly referred to as CAT6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5E and Category 3 cable standards.
Compared with CAT5 and CAT5E, CAT6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
FEATURES
Unterminated CAT6 in Reel Box
PVC Outer Jacket
Metre Marked
305m Reel Box
23 AWG
SPECIFICATIONS
Cable Type: CAT6
Connectors: Unterminated
Length: 305m (1000ft)
Colour: Orange
Jacket Material: PVC
Diameter: 6.2mm
Max. Rated Operating Temperature: 75°C
APPLICATIONS
Gigabit Ethernet, Multimedia, video, voice & data
Horizontal wiring in Local Area Networks (LAN)
550MHz Broadband Video
CERTIFICATIONS
UL listed
EIA/TIA and RCM approved
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition
IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1
CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2
RoHS compliance the European Union issued Directive 2002/95/EC
WARRANTY
3-years limited warranty
All Proposed Category 6 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1,CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2.
We implemented RoHS compliance for the requirement of European Union issued Directive 2002/95/EC.
CONSTRUCTION & CHARACTERISTICS
| Conductor | Material/Size | Bare Copper/23 AWG |
| Insulation | Material | HDPE |
| Thickness | Normal Avg.: 0.22 mm | |
| Diameter | Normal: 1.00 mm | |
| Colours | Blue/White-Blue Orange/White-Orange | |
| Green/White-Green Brown/White-Brown | ||
| Elongation | Min. 300% | |
| Tensile Strength | Min. 1.682 Kg/mm2 | |
| Sheath | Material | PVC |
| Thickness | Average: 0.50 mm | |
| Diameter | 6.3 ± 0.3 mm | |
| Colour | Assorted upon request | |
| Elongation | Min. 100% | |
| Tensile Strength | Min. 1.407 Kg/mm2 | |
| Aging at 100°C for 168Hrs | Min. elongation retention:50% Min. tensile strength retention:75% |
|
| Marking | CAT.6 UTP ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2-1 ELT/3P VERIFIED - 23AWGX4P SOLID TYPE CM (UL) c(UL) E164469XXXXXXM |
|
| or as customer request. | ||
| Flame Test | Burning five times, every time is less than 60 seconds and paper flag can't be burned. |
|
CAT6 Ethernet Cable Reel Box UTP LAN Cable w/ Solid Conductor | 305m Orange
