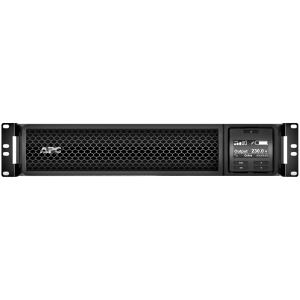

APC Smart-Ups Srt 1500Va Rm 230V Srt1500Rmxli-Nc
SKU
291731
Brand
MPN
SRT1500RMXLI-NC
Warranty
Standard Manufacturer's Warranty
$3,914.00
Buy Now And Earn 3914 Reward Points!
SRT1500RMXLI-NC Features
Key Features
Output power capacity
1.5kWatts / 1.5kVA
Rack Height
2U
Output Connections
(6) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
British BS1363A, IEC-320 C14, Schuko CEE 7/EU1-16P
Cord Length
6ft (1.83meters)
APC Smart-UPS SRT 1500VA RM 230V Network Card
High density, double-conversion on-line power protection
with scalable runtime
Includes: CD with software, Comms
cable, Country-specific detachable power
cord, Documentation CD, Installation guide, Network
Management Card, Rack Mounting brackets, Rack mounting
hardware, Rack Mounting support rails, Temperature
Probe, USB cable, Warranty card
-
Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
-
ECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
-
LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
-
Rack/Tower convertibleProtects the initial investment in the UPS when migrating from tower to rack-mount environment.
Smart-UPS On-Line Features & Benefits
Protection
Frequency and voltage regulation
Gives higher application availability by correcting
poor frequency and voltage conditions without using
the battery.
Generator compatible
Ensures clean, uninterrupted power to protected
equipment when generator power is used.
Input power factor correction
Minimizes installation costs by enabling the use of
smaller generators and cabling.
Cold-start capable
Provides temporary battery power when the utility
power is out.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a
fuse. (Not available on Wall Tap SKUs)
Safety-agency approved
Ensures the product has been tested and approved to
work safely with the connected service provider
equipment and within the specified environment.
Power conditioning
Protects connected loads from surges, spikes,
lightning, and other power disturbances.
Marketing Features
Low operating and maintenance costs with proven reliability
and intelligent battery management.
Intelligent battery management, pioneered by APC,
maximizes battery performance and life through
intelligent, precision temperature compensated
charging. Automatic self tests insure battery
reliability and warn customers in advance of battery
replacement. Convenient, easy to connect,
hot-swappable battery modules provide battery
replacement without powering down.
Save time with easy and convenient remote/network
accessibility.
Network manageable via serial, USB or Ethernet.
Includes Powerchute® Software for convenient
monitoring and control, safe operating system
shutdown, and innovative energy management
capabilities.
Peace of mind that comes with full equipment compatibility
and reliability of a leader
Provides pure sine wave output which is recommended
by server manufacturers using active power factor
corrected (PFC) power supplies. Safety agency tested
and approved means that you can deploy Smart-UPS
with confidence that they meet or exceed the
industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment
and data protected and available.
Network grade power conditioning protects from
damaging surges and disruptive noise. The double
conversion architecture provides tight voltage
regulation, frequency regulation ,and zero transfer
time to battery during power events.
Availability
Automatic internal bypass
Supplies utility power to the connected loads in the
event of a UPS power overload or fault.
Scalable runtime
Allows additional run time to be quickly added as
needed.
Intelligent battery management
Maximizes battery performance, life, and reliability
through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected
equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon
the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge
voltage according to battery temperature.
Manageability
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual
indicators.
Serial connectivity
Provides management of the UPS via a serial port.
Network manageable
Provides remote power management of the UPS over the
network.
InfraStruXure Manager Compatible
Enables centralized management via the APC
InfraStruXure Manager.
Adaptability
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when
adding extra runtime to the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when
migrating from tower to rack-mount environment.
Flash upgradeable firmware
Install maintenance releases of firmware remotely
using FTP.
Serviceability
Audible alarms
Provides notification of changing utility power and
UPS power conditions
Predictive failure notification.
Provides early-warning fault analysis ensuring
proactive component replacement.
| Controls/Indicators | |
|---|---|
| Status Indicators: |
|
| General Information | |
|---|---|
| Brand Name: | APC by Schneider Electric |
| Manufacturer Website Address: | http://www.schneider-electric.com.au |
| Manufacturer: | Schneider Electric SA |
| Product Line: | Smart-UPS |
| Product Name: | Smart-UPS 1.5KVA Tower/Rack Convertible UPS |
| Product Type: | Dual Conversion Online UPS |
| Interfaces/Ports | |
|---|---|
| EPO Port: | Yes |
| Network (RJ-45): | Yes |
| Serial Port: | Yes |
| USB (HID Compliant) Port: | Yes |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Software Included: | APC PowerChute Network Shutdown Software |
| Physical Characteristics | |
|---|---|
| Depth: | 505 mm |
| Form Factor: | Tower/Rack Convertible |
| Height: | 85 mm |
| Rack Height: | 2U |
| Weight (Approximate): | 21 kg |
| Width: | 432 mm |
| Marketing Text | Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Smart-UPS are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. |
| PI Date | May 2019 |
| Brand Name | APC |
| Manufacturer Web Site | http://www.apc.com |
| Product Line | Smart-UPS |
| Product Type | Uninterruptible Power Supply |
| Type | Sealed Lead Acid |
| Output Connection | 6 x IEC 320 C13 |
| SmartSlot | Yes |
| SmartSlot Card Installed | AP9631 |
| Input Voltage | 230Volt |
| Output Power | 1500Watt |
| Output Voltage | 230Volt |
| Surge Energy Rating | 432 Joules |
| Input Frequency | 40 - 70Hz |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 505.0 |
| Height (mm) | 85.0 |
| Width (mm) | 432.0 |
| Weight (Kg) | 21.0 |
| Colour | Black |
| Cord Length | 1.83meter |
| Other Features | * Load Crest Factor: 3 : 1 * Emergency Power Off (EPO) * Topology: Double Conversion Online * Built-in Bypass |
| Rack Height | 2U |
| Control Panel | * Multi-function LCD status and control console |
| Audible Alarm | * Audible and visible alarms prioritized by severity |
| Operating Temperature | 0 - 40°C |
| Environmental Compliance | * RoHS |
